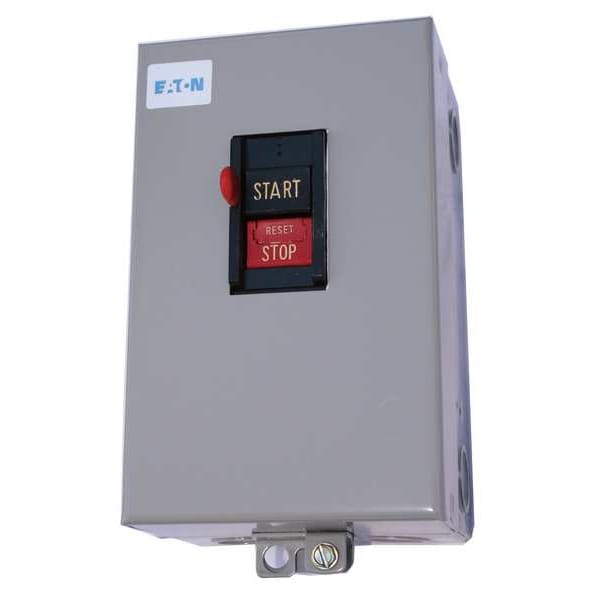

Interruptor de motor manual Cutler-Hammer, NEMA, 3P, M-0.
| Operator | Push Button |
|---|---|
| NEMA Size | M-0 |
| Type | Type B100 non-reversing |
| Enclosure NEMA Rating | 1 |
| Depth | 4.98 in |
| Number of Required Thermals | 3 |
| Frame Size | Not Applicable |
| Amps AC | 26 A |
| Height | 7.59 in |
| Item | Manual Motor Starter |
| Width | 4.72 in |
| Number of Poles | 3 |
| Max. Voltage | 600V AC |
| HP @ 3 Phase - 480V | 5 hp |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 3 Phase - 240V | 2 hp |
| Pilot Light | No |
| Description/Special Features | Bimetallic Overload Relay |
| HP @ 3 Phase - 460-575V | 5 hp |
| HP @ 3 Phase - 200V | 2 HP |
| Standards | CSA, UL Listed |
| HP @ 3 Phase - 575V | 5 hp |
| HP @ 1 Phase - 230V | 3 hp |
| Phase Loss Sensitivity | No |
| Product Height | 6.3 in |
| Size | NEMA size 0 |
| Product Length/Depth | 5-1/2 in |
| Special features | Pushbutton operator |
| Used with | For Polyphase Motors |
| Certifications | CSA Certified |
| Product Width | 1.77 in |
| Product Name | Eaton NEMA starter |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Starter Style | NEMA |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Horsepower @ Three Phase - 208V AC | 2 HP |
| Maximum Voltage Rating | 600 V AC |
| Overall Depth | 5-1/2 in |
| Phase | Three |
| Minimum Overload Relay Current Setting | Not Applicable |
| Overall Height | 6.3 in |
| Series | B100 |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Horsepower @ Three Phase - 240V AC | 2 HP |
| Includes Pilot Light | No |
| Maximum Overload Relay Current Setting | Not Applicable |
| IP Rating | Not Applicable |
| Overload Protection Type | Thermal |
| Overall Width | 1.77 in |
| Current AC | 5 A |
| Package Quantity | 1 |
