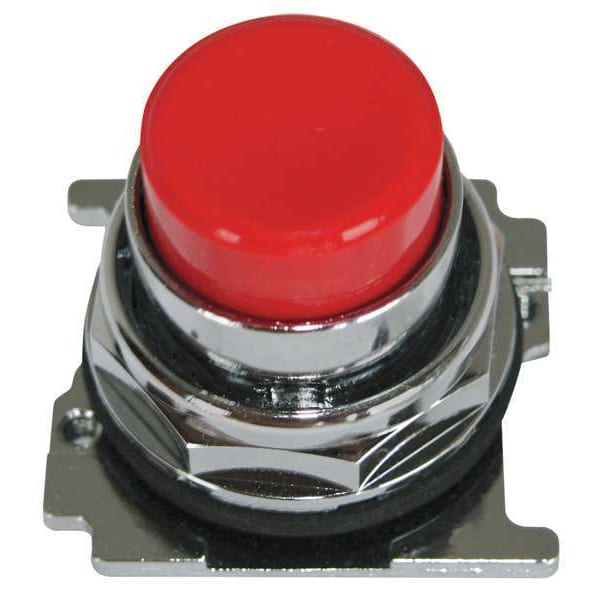

Operador de botón de presión sin iluminación de Cutler-Hammer, 30 mm, rojo.
| Size | 30 mm |
|---|---|
| Item | Extended Push Button |
| Legend | Not Applicable |
| Features | Drainage Holes, Grounding Nibs, One Piece Body |
| Color | Red |
| Standards | CE, CSA, UL Listed |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Type of Operator | Extended Button |
| Basic Material | Metal |
| Bezel Material | Zinc Die Cast |
| Action | Momentary |
| IP Rating | IP65 |
| Head Material | Plastic |
| Number of Operators | 1 |
| Lamp Type | Not Applicable |
| Type | 30.5 mm, Heavy-Duty |
| Bezel | Chrome |
| Lamp Module Type | Not Applicable |
| Terminal Connection | Screw Clamp |
| Product Height | 2.1 in |
| Product Width | 1.9 in |
| Actuator color | Red |
| Product Length/Depth | 1.9 in |
| Compliances | CE Marked |
| Certifications | UL Listed |
| Rating | NEMA 3 |
| Operating Mode | Momentary |
| Series | 10250T |
| Illumination | Non-illuminated |
| Actuator material | Plastic |
| Actuator | Extended |
| Product Name | Eaton 10250T pushbutton |
| Push Button Style | Extended |
| Lamp Voltage - Maximum | Not Applicable |
| Overall Depth | 1.9 in |
| Maintained Action Release | Not Applicable |
| Operating Temperature - Minimum | 1 deg F |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Overall Height | 2.1 in |
| Panel Cutout Diameter | 30 mm |
| Operating Temperature - Maximum | 150 deg F |
| Number of Indicator Lights | 0 |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13 |
| Overall Width | 1.9 in |
| Legend Background Color | Not Applicable |
| Manufacturer Warranty Length | 1 yr |
| Legend Color | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Mushroom Head Diameter | Not Applicable |
| Head Color | Red |
| Operator Material | Polymer |
| Package Quantity | 1 |
