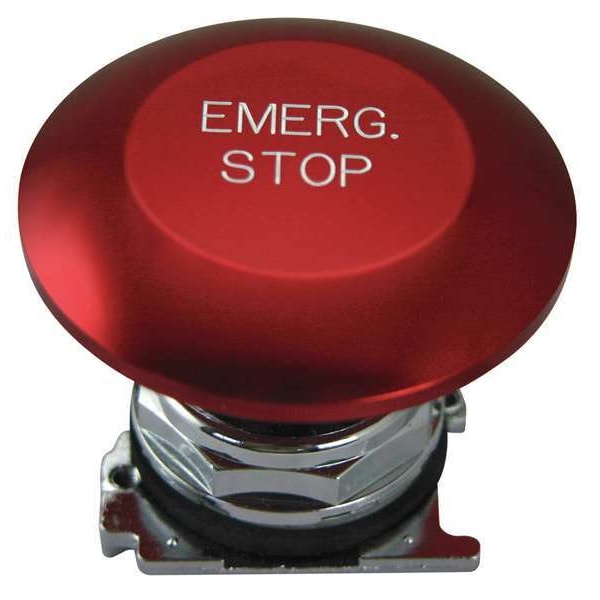

Operador de botón pulsador sin iluminación Cutler-Hammer, 30mm, Rojo
| Size | 30 mm |
|---|---|
| Item | Mushroom Head Push Button |
| Legend | Emerg. Stop |
| Features | Drainage Holes, Grounding Nibs, One Piece Body |
| Color | Red |
| Bezel Material | Chrome |
| Basic Material | Metal |
| IP Rating | IP65 |
| Action | Momentary |
| Head Material | Metal |
| Standards | CE, CSA, UL Listed |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Type of Operator | 65mm Mushroom Head |
| Number of Operators | 1 |
| Lamp Module Type | Not Applicable |
| Lamp Type | Not Applicable |
| Bezel | Chrome |
| Terminal Connection | Screw Clamp |
| Type | Pushbutton |
| Bus material | Zinc die cast |
| Degree of protection | NEMA 13 |
| Product Length/Depth | 2.4 in |
| Rating | NEMA 4X |
| Operating Mode | Momentary |
| Certifications | CSA Certified |
| Actuator | Jumbo mushroom |
| Compliances | CE Marked |
| Inscription | EMERGENCY STOP |
| Series | 10250T |
| Product Width | 2.1 in |
| Actuator color | Red |
| Actuator material | Anodized aluminum |
| Illumination | Non-illuminated |
| Product Height | 3.2 in |
| Field color | Black |
| Operator Material | Aluminum |
| Head Color | Red |
| Mushroom Head Diameter | 65 mm |
| Number of Indicator Lights | 0 |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13 |
| Legend Background Color | Red |
| Operating Temperature - Minimum | 1 deg F |
| Overall Width | 2.1 in |
| Overall Height | 3.2 in |
| Operator Illumination | Non-Illuminated |
| Legend Color | Not Applicable |
| Push Button Style | Mushroom Head |
| Maintained Action Release | Not Applicable |
| Lamp Voltage - Maximum | Not Applicable |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Panel Cutout Diameter | 30 mm |
| Manufacturer Warranty Length | 1 yr |
| Operating Temperature - Maximum | 150 deg F |
| Overall Depth | 2.4 in |
| Package Quantity | 1 |
