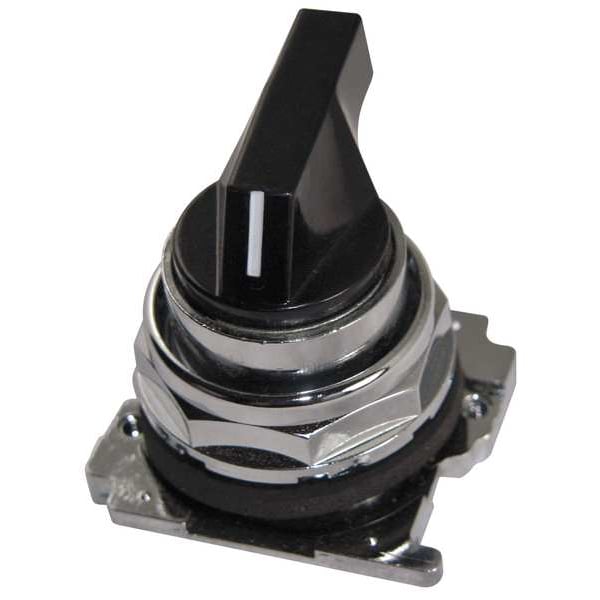

Interruptor selector no iluminado Cutler-Hammer, 30mm, 4 posiciones, palanca.
| Item | Long-Handled Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Action | Maintained |
| Operator Head Material | Metal |
| Cam | 7 |
| Operator Color | Black |
| Color | Black |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Bezel Material | Anodized Aluminum |
| Position | 4 |
| Key Removal | No Key |
| Bezel Color | Chrome |
| IP Rating | IP65 |
| Switch Operation @ Position C | X |
| Switch Operation @ Position D | X |
| Switch Operation @ Position A | O |
| Switch Operation @ Position B | O |
| Key Number | No Key |
| Standards | CSA, UL Listed |
| Series | 10250T |
| Throw type | 40° |
| Type | 30.5 mm, Heavy-Duty |
| Certifications | UL Listed |
| Product Length/Depth | 2 in |
| Product Width | 2 in |
| Illumination | Non-illuminated |
| Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Cam code | Cam 7 |
| Product Height | 2.3 in |
| Compliances | CE Marked |
| Actuator | Lever |
| Actuator color | Black |
| Number Of Positions | 4 |
| Product Name | Eaton 10250T pushbutton |
| Overall Height | 2.3 in |
| Overall Depth | 2 in |
| Hazardous Location Specification | Not Rated |
| Panel Cutout Diameter | 30 mm |
| NEMA Enclosure Rating | 3, 4, 13, 12, 4X, 3R |
| Switch Function @ 2nd Position | Off |
| Manufacturer Warranty Length | 1 yr |
| Key Removal Position | Not Applicable |
| Operator Head Type | Long-Handled Knob |
| Operator Head Color | Black |
| Overall Width | 2 in |
| Switch Function @ 3rd Position | On |
| Switch Function @ 1st Position | Off |
| Includes Operator Key | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Switch Function @ 4th Position | On |
| Package Quantity | 1 |
