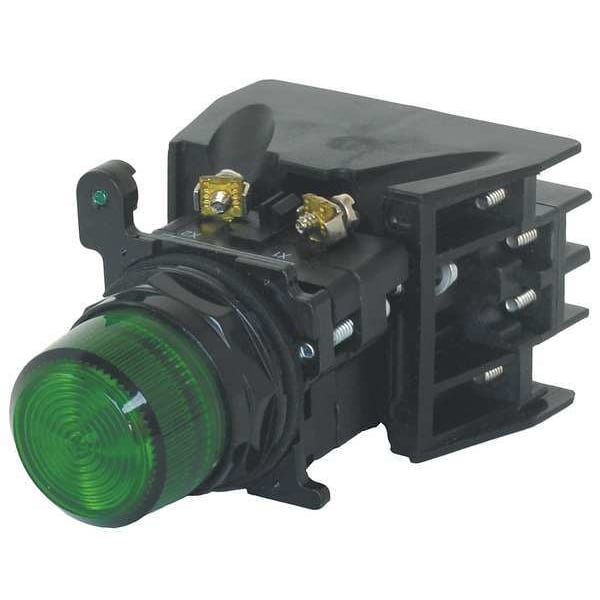

Cutler-Hammer Luz piloto, LED, 24VCA/VCC, verde.
| Item | Indicating Light |
|---|---|
| Voltage | 24V AC/DC |
| Color | Green |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Saddle Clamp |
| Lens Material | Plastic |
| Lens Type | Fresnel |
| Size | 30 mm |
| Lamp Module Type | Full Voltage |
| Basic Material | Metal |
| Safety Rating | Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB and H2 (NEC 505) |
| IP Rating | IP65 |
| Standards | CE, CSA, UL Listed |
| Lamp Voltage | 24V AC/DC |
| Body Material | Metal |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Length | 0.01 in |
| Width | 0.01 in |
| Height | 0.01 in |
| Type | Oiltight, Watertight |
| Series | 1250T |
| Product Name | Eaton 10250T pushbutton |
| Light Unit Voltage | 24 Vac/dc |
| Rating | NEMA 3R;NEMA 12;NEMA 3S;NEMA 4X;NEC Class I Division 2, Groups B, C and D;NEMA 3;NEMA 4;NEMA 13 |
| Actuator | Standard |
| Compliances | CE Marked |
| Certifications | UL Listed;CSA Certified |
| Light Unit Type | LED, full voltage |
| Includes Lamp Module | Lamp Module Included |
| Lamp Voltage - Maximum | 24 V AC/DC |
| Body Finish | Chrome Plated |
| Panel Cutout Diameter | 30 mm |
| Lens Color | Green |
| Lamp Color | Green |
| Manufacturer Warranty Length | 1 yr |
| Includes Lens | Lens Included |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| Voltage Rating - Maximum | 24 V AC/DC |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 3R, 3S |
| Package Quantity | 1 |
