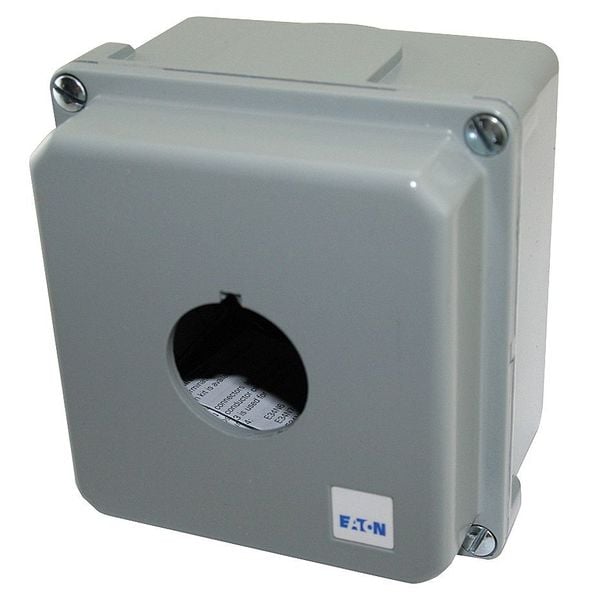

Caja de botón pulsador Cutler-Hammer, 4.00 pulg. de altura, Al
| Item | Push Button Enclosure |
|---|---|
| Number of Columns | 1 |
| Hole Size | 30 mm |
| Material | Die Cast Zinc |
| Number of Holes | 1 |
| Conduit Size | 3/4 in |
| NEMA Rating | 12, 13, 4, 4X |
| Dimensions | 4 in H x 3.88 in W x 3 in D |
| Height | 4 in |
| Width | 3.88 in |
| Depth | 3 in |
| Standards | CE, CSA, UL Listed |
| Type | 1 Element |
| Mounting Style | Surface |
| Certifications | CSA Certified |
| Compliances | CE Marked |
| Number of elements | 1 |
| Product Width | 4 in |
| Rating | NEMA 4 |
| Series | 10250T |
| Bus material | Zinc die cast |
| Product Length/Depth | 5 in |
| Mounting method | Surface |
| Product Height | 3-3/4 in |
| Product Name | Eaton 10250T pushbutton enclosure |
| Panel Cutout Diameter | 30 mm |
| Overall Width | 4 in |
| Overall Depth | 5 in |
| Compatible with Series | 10250T |
| Overall Height | 3-3/4 in |
| Compatible Conduit Size - Maximum | 3/4 in |
| NEMA Enclosure Rating | 12, 13, 4, 4X |
| Package Quantity | 1 |
