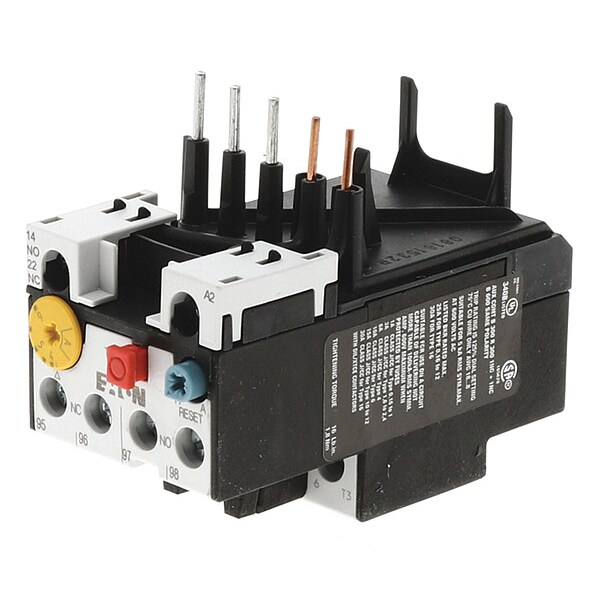

Relay 4-6A Iec Overload Relay B Frme
| Item | IEC Overload Relay |
|---|---|
| Phase | Three |
| Standards | ATEX Compliant, CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Reset Type - Relay | Auto, Manual |
| Number of Poles | 3 |
| Item - Relay | IEC Style Overload Relay |
| Overload Relay Current Range | 4 to 6 A |
| Frame / Series / Class / Code | Frame B |
| Use With - Contactors and Starters | Mfr. Series XTCE Contactors |
| Trip Class - Overload | 10 |
| Includes Mounting Hardware | Not Applicable |
| NEMA Size | Not Applicable |
| Overall Height | 1.89 in |
| Compatible with Series | XT Mini Contactors |
| Auxiliary Contact Form | 1NO, 1NC |
| Maximum Overload Relay Current Setting | 6 A |
| IP Rating | IP20 |
| Frame Size | B |
| Reset Type | Manual, Auto |
| Minimum Operating Temperature | -13 deg F |
| Body Height | 3.28 in |
| Overload Protection Type | Thermal |
| Body Width | 1.76 in |
| Minimum Overload Relay Current Setting | 4 A |
| Body Depth | 1.86 in |
| Trip Class | 10 |
| Maximum Operating Temperature | 122 deg F |
| Mounting Style | Direct To Contactor |
| Relay Style | IEC |
| Country of Origin (subject to change) | Georgia |
| Package Quantity | 1 |
