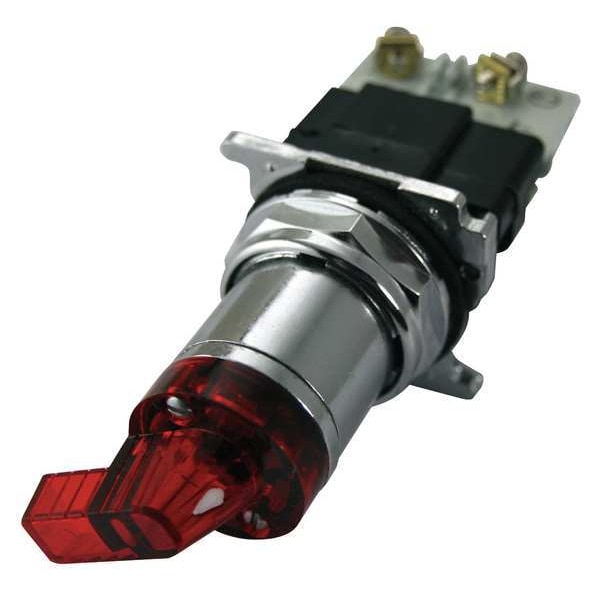

Interruptor selector Cutler-Hammer, Iluminado, 4 Posiciones, Palanca, 30mm.
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Action | Maintained |
| Contact Form | 2NO/2NC |
| Cam | 3 |
| Operator Head Material | Polymer |
| Color | Red |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Position | 4 |
| Bezel Material | Zinc |
| Bezel Color | Chrome |
| Standards | CCC, CE, CSA, GOST-R, Lloyd's Register |
| Lamp Type | Incandescent |
| IP Rating | IP68 |
| Switch Operation @ Position C | OOXO |
| Switch Operation @ Position B | OXOO |
| Lamp Module Voltage | 120V AC |
| NEMA Contact Rating Designation | A600, P600 |
| Replacement Lamp | Mfr. No. 755 |
| Switch Operation @ Position A | XOOO |
| Switch Operation @ Position D | OOOX |
| Lamp Module Type | Transformer |
| Lamp Voltage | 6V AC |
| Includes | Contact Block, Selector Switch Operator |
| Contact Rating | 10A @ 660V AC/DC |
| DC Contact Rating | 5 A @ 250 V |
| Series | 10250T |
| AC Contact Rating | 10 A @ 660 V |
| Product Width | 2.02 in |
| Contact configuration | 1 NC-1 NO-1 NO-1 NC |
| Light unit type | Transformer |
| Operating mode | Maintained |
| Actuator color | Red |
| Illumination | Illuminated |
| Type | Lever |
| Compliances | CE Marked |
| Number Of Positions | 4 |
| Product Length/Depth | 2.313 in |
| Light unit voltage | 120 V |
| Product Height | 3.253 in |
| Certifications | CSA Certified |
| Product Name | switch |
| Switch Function @ 2nd Position | On |
| Metal Operator Head Finish | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Operator Illumination | Illuminated |
| Operator Head Type | Long-Handled Knob |
| Operator Head Color | Red |
| Overall Height | 3-1/4 in |
| Includes Operator Key | Not Applicable |
| Hazardous Location Specification | Not Rated |
| Overall Depth | 2.31 in |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | On |
| Key Removal Position | Not Applicable |
| NEMA Enclosure Rating | 3, 4, 13, 12, 4X, 3R |
| Lamp Voltage - Maximum | 120 V AC |
| Switch Function @ 1st Position | On |
| Contact Block Material | Metal |
| Overall Width | 2.02 in |
| Manufacturer Warranty Length | 1 yr |
| Package Quantity | 1 |
