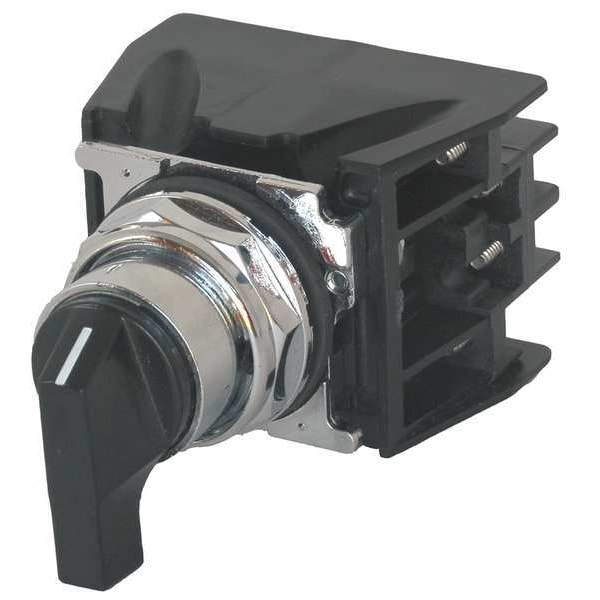

Selector de corte y martillo con contactos, 2 posiciones.
| Item | Long-Handled Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Contact Form | 1NO/1NC |
| Action | Maintained |
| Operator Head Material | Metal |
| Color | Black |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Position | 2 |
| Bezel Material | Metal |
| Key Removal | No Key |
| Number of Directions | 2 |
| Standards | CSA, IEC, UL Listed |
| Contact Rating | 10A @ 600V AC, 2.5A @ 250V DC |
| NEMA Contact Rating Designation | A600, Q300 |
| Safety Rating | Hazard Location - Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB + H2 (NEC 505), UL, CSA, IEC |
| Switch Operation @ Position A | XO |
| IP Rating | IP65 |
| Switch Operation @ Position B | OX |
| Series | 10250T |
| Compliances | CE Marked |
| Product Height | 1 in |
| Product Diameter | 1.38 in |
| Certifications | CSA Certified |
| Contact configuration | 1 NO-1 NC |
| Illumination | Non-illuminated |
| Product Length/Depth | 1 in |
| Number Of Positions | 2 |
| Product Width | 1 in |
| Actuator | Lever |
| Actuator color | Black |
| Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13, NEC Class I Division 2, Groups B, C and D |
| Type | 30.5 mm, Class I Division 2 |
| Product Name | Eaton 10250T pushbutton |
| Switch Function @ 1st Position | On |
| Panel Cutout Diameter | 30 mm |
| Switch Function @ 2nd Position | On |
| NEMA Enclosure Rating | 3, 4, 13, 12, 4X, 3R |
| Key Removal Position | Not Applicable |
| Includes Operator Key | Not Applicable |
| Operator Head Color | Black |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Switch Function @ 3rd Position | No Third Position |
| Operator Head Type | Long-Handled Knob |
| Switch Function @ 4th Position | No Fourth Position |
| Package Quantity | 1 |
