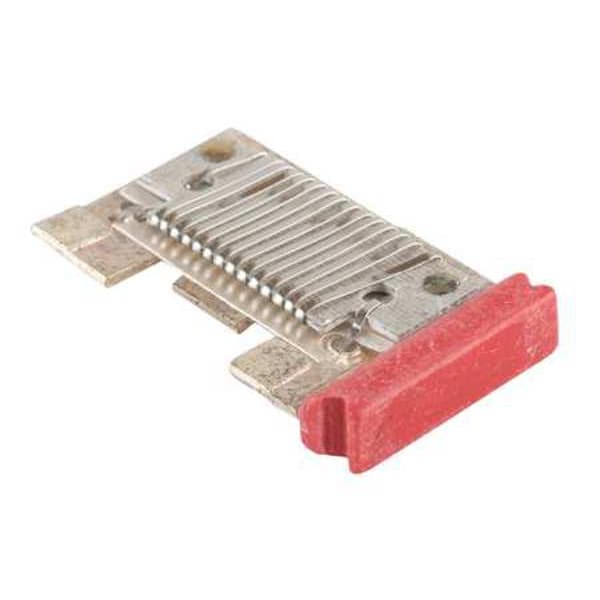

Unidad térmica Cutler-Hammer, 1.04 a 1.15A
| Item | Thermal Unit |
|---|---|
| Full Load Amps | 1.04 to 1.15 |
| For Use With | Appleton Contender Series Manual Motor Starters, Eaton MS Series Manual Motor Starter |
| FL Amp @ 1-Ph/ Man. Size 1/ Standard Enclosure | 1.04 to 1.15 |
| FL Amp @ 1-Ph/ Man. Size 1P/ Standard Enclosure | 1.04 to 1.15 |
| FL Amp @ 1-Ph/ Man. Size 1/ Open & Large Enclosure | 1.04 to 1.15 |
| FL Amp @ 1-Ph/ Man. Size 1P/ Open & Large Enclosure | 1.04 to 1.15 |
| FL Amp @ 1-Ph/ Man. Size 0/ Open & Large Enclosure | 1.04 to 1.15 |
| FL Amp @ 1-Ph/ Man. Size 0/ Standard Enclosure | 1.04 to 1.15 |
| Sensing Method | Bimetallic |
| Full Load Current | 1.04 to 1.15 A |
| Trip Class | 20 |
| NEMA Size | 1, 5, 3, 4 |
| Overload Protection Type | Thermal |
| Compatible with Series | MS |
| Compatible with Manufacturer Model Number | MST01, MST01AH, MST01DN, MST01DN1P, MST01EH, MST01FN, MST01SN, MST01SN1P, MST02, MST02AH, MST02DN, MST02DN1P, MST02EH, MST02FN1P, MST02RN1PH, MST02SN, MST02SN1P |
| Compatible Manufacturer Part Number | MST01, MST01AH, MST01DN, MST01DN1P, MST01EH, MST01FN, MST01SN, MST01SN1P, MST02, MST02AH, MST02DN, MST02DN1P, MST02EH, MST02FN1P, MST02RN1PH, MST02SN, MST02SN1P |
| Compatible Manufacturer Model Number | MST01, MST01AH, MST01DN, MST01DN1P, MST01EH, MST01FN, MST01SN, MST01SN1P, MST02, MST02AH, MST02DN, MST02DN1P, MST02EH, MST02FN1P, MST02RN1PH, MST02SN, MST02SN1P |
| For Use with Mfr. Model Number | MST01, MST01AH, MST01DN, MST01DN1P, MST01EH, MST01FN, MST01SN, MST01SN1P, MST02, MST02AH, MST02DN, MST02DN1P, MST02EH, MST02FN1P, MST02RN1PH, MST02SN, MST02SN1P |
| Type | Single-phase starter |
| Certifications | UL Listed |
| Full load current range | 1.04 -1.15 A |
| Used with | Used as a heater for the MS Series, single phase starter |
| Compatible with Manufacturer Model No. | MST01, MST01AH, MST01DN, MST01DN1P, MST01EH, MST01FN, MST01SN, MST01SN1P, MST02, MST02AH, MST02DN, MST02DN1P, MST02EH, MST02FN1P, MST02RN1PH, MST02SN, MST02SN1P |
| Package Quantity | 1 |
