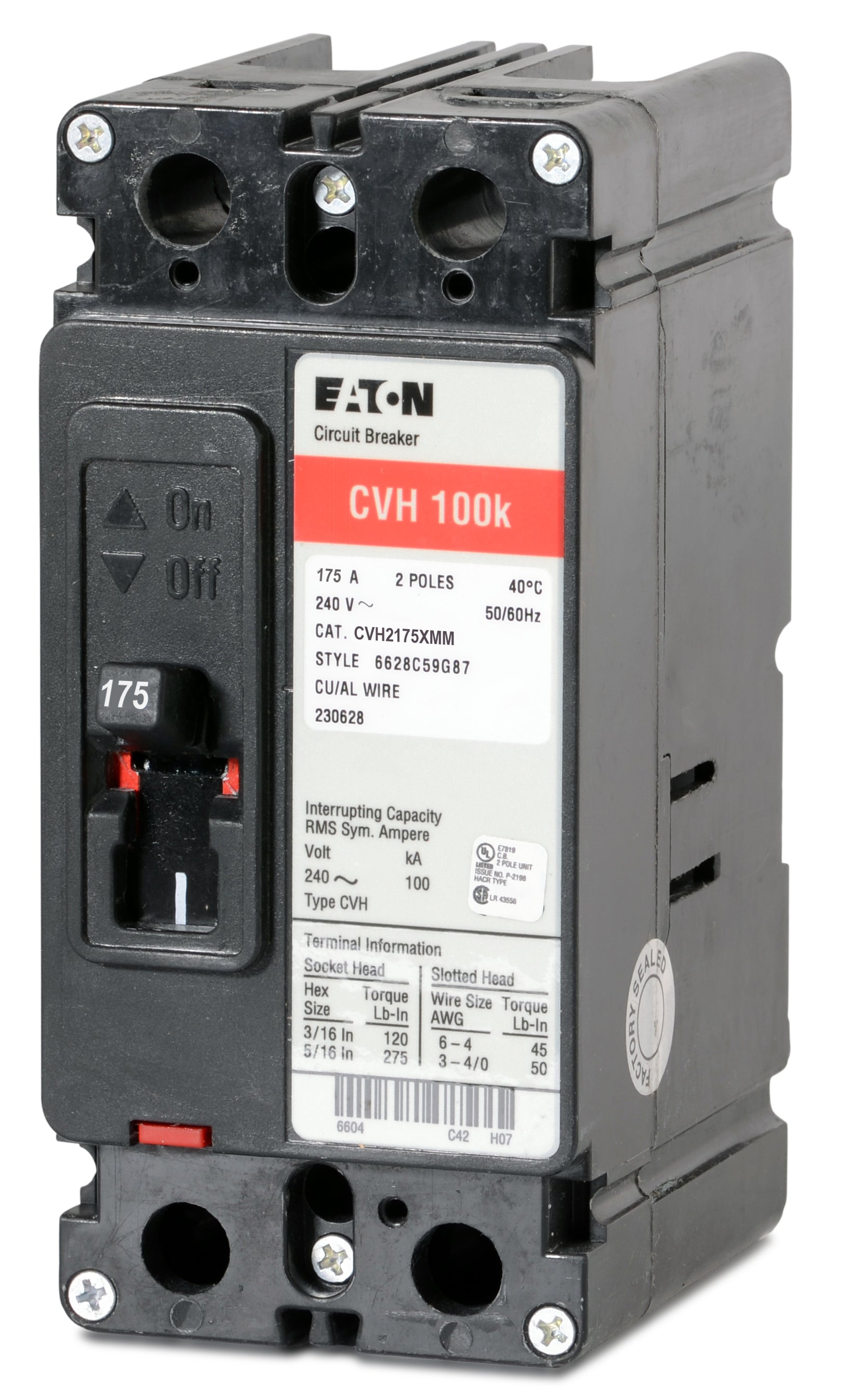

The Eaton CVH2175XMM is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 175 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 100kAIC at 240VAC. The CVH2175XMM has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | CVH |
| Amperage | 175 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL, CSA |
| Interrupting Rating | 100kAIC at 240VAC |
| Frame Type | CV |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Wire Gauge | 6 AWG to 4/0 AWG, Cu/Al |
| Temperature Rating | 40 °C |
| Mpn | CVH2175XMM |
| Upc | 786685707037 |
