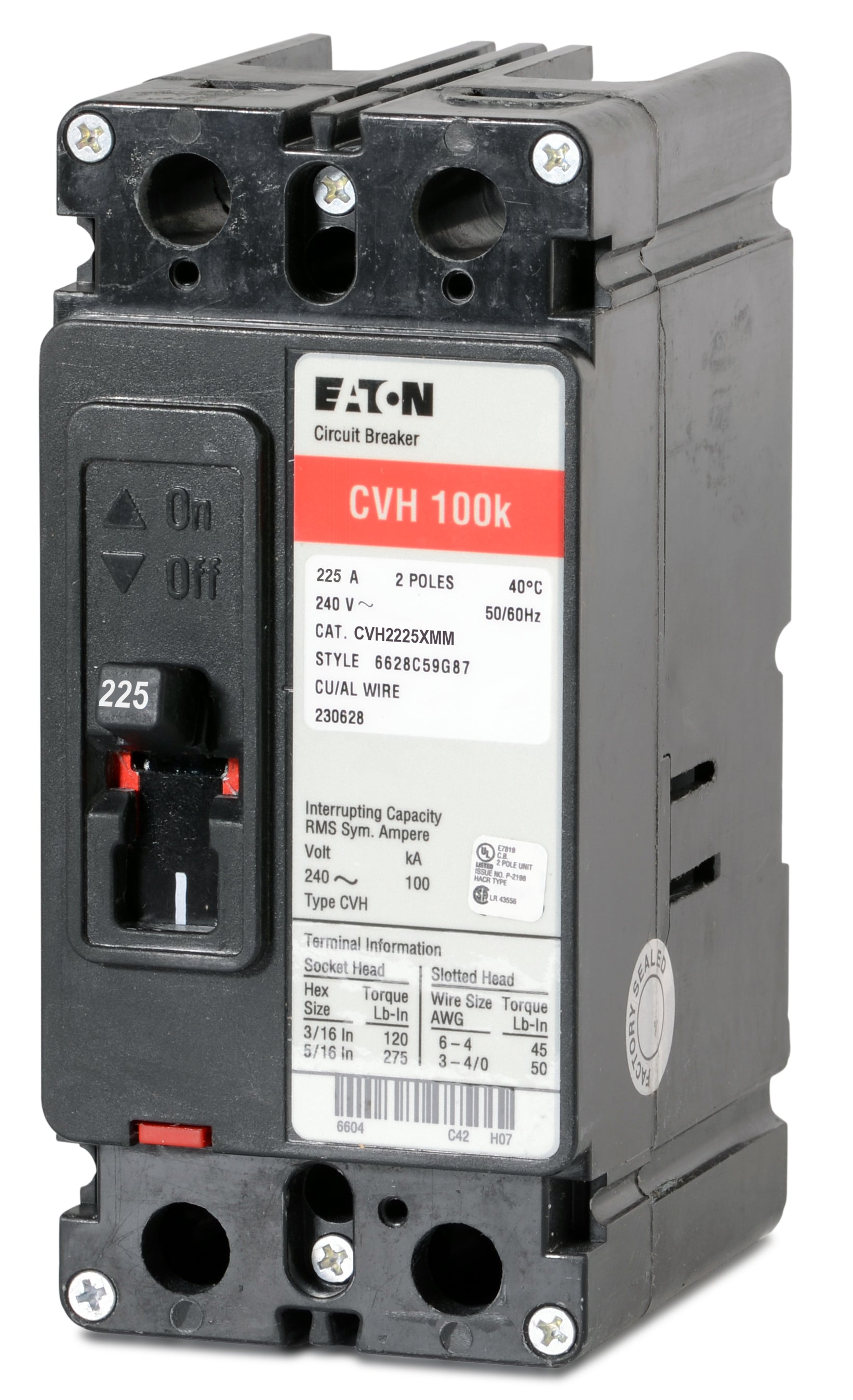

The Eaton CVH2225XMM is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 225 Amps and a voltage rating of 240VAC. It has an interrupting rating of 100kAIC. The CVH2225XMM has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | CVH |
| Amperage | 225 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL, CSA |
| Interrupting Rating | 100kAIC |
| Frame Type | CC |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Wire Gauge | #6 to 4/0 AWG CU/AL |
| Temperature Rating | 40°C |
| Mpn | CVH2225XMM |
| Upc | 786685707051 |
