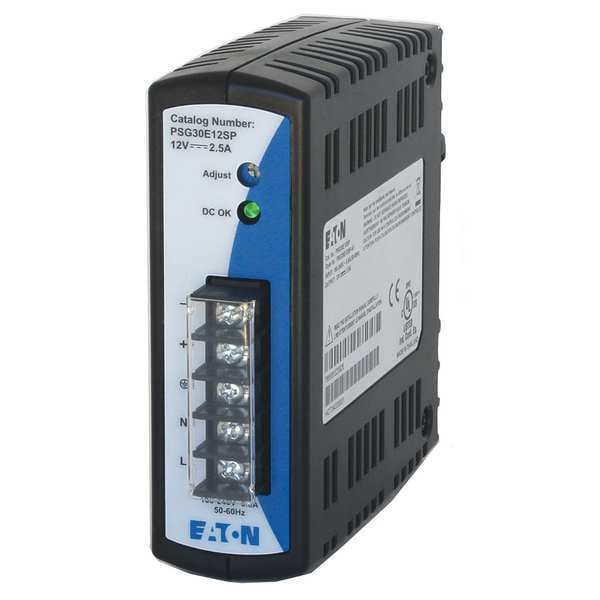

DC Power Supply, 100/240V AC, 12V DC, 30W, 2.50A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 12V DC |
| Power Rating | 30 W |
| Output Amps | 2.5 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 3.98 in |
| Width | 1.26 in |
| Depth | 4.76 in |
| Hz | 50/60 Hz |
| Status Indicator | LED/DC OK Signal |
| Features | Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint |
| Operating Temp. Range | -20 to 80 deg C |
| Output Noise | Less than 50 mV |
| Hold Up Time | Greater than 22 msec |
| IP Rating | IP20 |
| Series | PSG |
| Standards | CE, CSA, cUL, cULus/UL 60950-1, EN, German Safety, IEC, RoHS, UL 508 |
| Peak Amps | 3.75 |
| Connection | Screw |
| Terminals | Heavy-duty screw |
| Compliances | CE Marked;German Safety |
| Certifications | cUL Certified;cULus/UL 60950-1;EN Listed;UL 508;IEC Rated;CSA Certified |
| Special Features | Varistor Transient Surge Voltage |
| Wire Connection Type | Terminals |
| Current - Peak | 3.75 A |
| Housing Material | Plastic |
| Manufacturer Warranty | 1 yr Installation, 18 mo Shipment |
| NEMA Enclosure Rating | 1 |
| Operating Temperature - Maximum | 167 deg F |
| Current - Output | 2.5 A |
| Output Power - Rated | 30 W |
| Operating Temperature - Minimum | -4 deg F |
| Input Frequency - Nominal | 50/60 Hz |
| Package Quantity | 1 |
