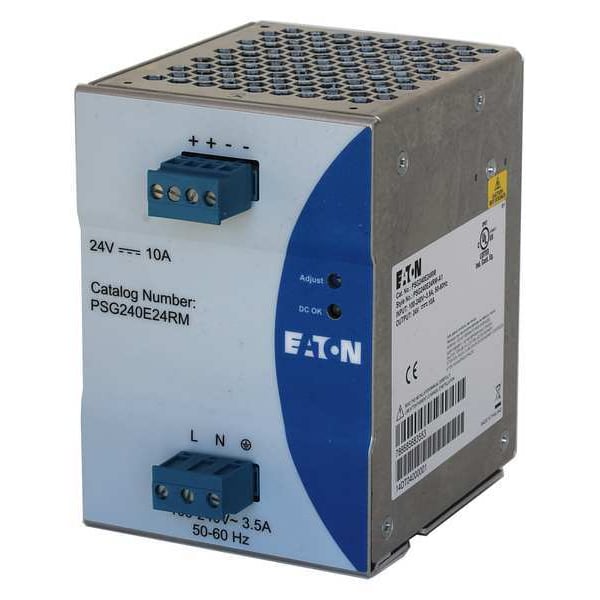

DC Power Supply, 100/240V AC, 240 W, 10 A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Power - Rated | 240 W |
| Current - Output | 10 A |
| Mounting | DIN Rail |
| Housing Material | Aluminum |
| Standards | CE, CSA, cUL 62368-1, cULus/UL 60950-1, DIN 57100-410, EN 50178, EN 60204, EN 61000-4-11, EN 61000-4-2, EN 61000-406, EN 61000-6-2, EN 61000-6-3, EN 610003-2, German Safety, IEC, PELV (EN 60204), RoHS, SELV (EN 60950), UL 508, UL 62368-1 |
| Power Rating | 240 W |
| Output Amps | 10 A |
| IP Rating | IP20 |
| Hold Up Time | Greater than 22 msec |
| Status Indicator | LED/DC OK Signal |
| Case Material | Aluminum Case |
| Hz | 50/60 Hz |
| Phase - Electrical | Single |
| Output Voltage | 24V DC |
| Features | Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint |
| Operating Temp. Range | -20 to 80 deg C |
| Width | 3.35 in |
| Depth | 4.76 in |
| Series | PSG |
| Height | 4.88 in |
| Peak Amps | 15 |
| Style | Switching |
| Output Noise | Less than 50 mV |
| Degree Of Protection | IP20 |
| Certifications | cULus/UL 60950-1;SELV (EN 60950);EN 61000-4-11;EN 60204;EN 50178;EN 61000-4-2;IEC Rated;UL 508;PELV (EN 60204);EN 61000-406;CSA Certified;EN 61000-6-3;EN 61000-6-2;EN 610003-2;UL 62368-1;cUL 62368-1 |
| Compliances | German Safety;DIN 57100-410;CE Marked |
| Frequency Rating | 47-63 Hz |
| Terminals | Finger safe |
| Wire Size - Maximum | 14 AWG |
| Maximum Efficiency @ 115V AC | 90% |
| Wire Size - Minimum | 16 AWG |
| Maximum Efficiency @ 230V AC | 90% |
| Current - Peak | 15 A |
| NEMA Enclosure Rating | 1 |
| Current - Inrush | 35 A |
| Special Features | Finger Safe, Overvoltage Protection |
| Operating Temperature - Minimum | -4 deg F |
| Mean Time Between Failures (MTBF) | 500,000 hr |
| Operating Temperature - Maximum | 167 deg F |
| Package Quantity | 1 |
