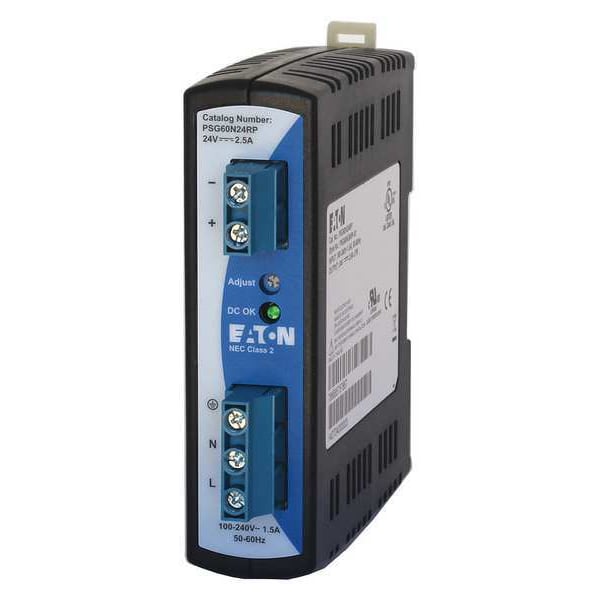

DC Power Supply, 100/240V AC, 24V DC, 60W, 2.50A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 24V DC |
| Power Rating | 60 W |
| Output Amps | 2.5 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 4.69 in |
| Width | 1.26 in |
| Depth | 4.76 in |
| Hz | 50/60 Hz |
| Output Noise | Less than 50 mV |
| Status Indicator | LED/DC OK Signal |
| Operating Temp. Range | -20 to 80 deg C |
| IP Rating | IP20 |
| Peak Amps | 2.5 |
| Series | PSG |
| Standards | CE, CSA, cUL 62368-1, cULus/UL 60950-1, DIN 57100-410, EN 50178, EN 60204, EN 61000-4-11, EN 61000-4-2, EN 61000-406, EN 61000-6-2, EN 61000-6-3, EN 610003-2, German Safety, IEC, PELV (EN 60204), RoHS, SELV (EN 60950), UL 508, UL 62368-1 |
| Features | Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint |
| Hold Up Time | Greater than 22 msec |
| Certifications | CSA Certified;UL Listed;cUL Listed;EN 60204;EN 61000-4-11;EN 610003-2;EN 61000-4-2;EN 61000-406;UL 508;EN 50178;EN 61000-6-2;IEC Rated;PELV (EN 60204);EN 61000-6-3;cRUus;UL Listed file 60950-1;SELV (EN 60950) |
| Compliances | CE Marked;German Safety;DIN 57100-410 |
| Input Frequency - Nominal | 50/60 Hz |
| Housing Material | Plastic |
| Current - Output | 2.5 A |
| Output Power - Rated | 60 W |
| Operating Temperature - Maximum | 176 deg F |
| Operating Temperature - Minimum | -13 deg F |
| NEMA Enclosure Rating | 1 |
| Current - Peak | 2.5 A |
| Manufacturer Warranty | 1 yr Installation, 18 mo Shipment |
| Special Features | Overvoltage Protection |
| Package Quantity | 1 |
