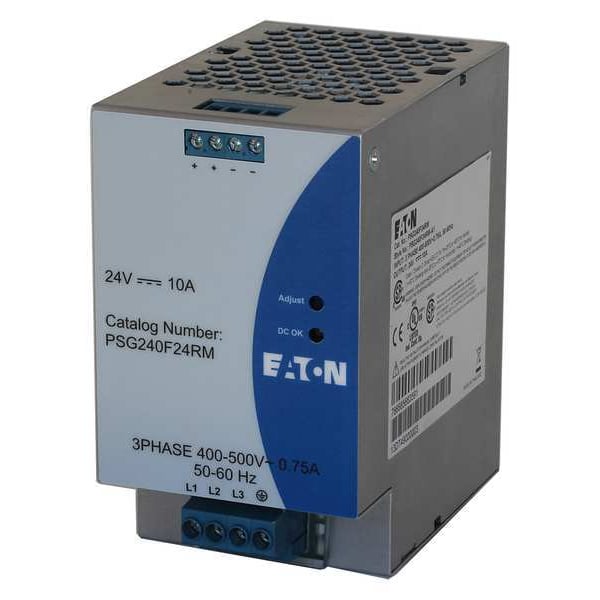

DC Power Supply, 320/500V AC, 24V DC, 240W, 10A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 320/500V AC |
| Output Voltage | 24V DC |
| Power Rating | 240 W |
| Output Amps | 10 A |
| Mounting | DIN Rail |
| Case Material | Aluminum Case |
| Phase - Electrical | Three |
| Style | Switching |
| Height | 4.61 in |
| Width | 2.76 in |
| Depth | 4.76 in |
| Hz | 50/60 Hz |
| IP Rating | IP20 |
| Series | PSG |
| Hold Up Time | Greater than 22 msec |
| Peak Amps | 15 |
| Status Indicator | LED/DC OK Signal |
| Output Noise | Less than 50 mV |
| Features | Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint |
| Standards | CE, CSA, EN, IEC, UL Listed |
| Operating Temp. Range | -20 to 80 deg C |
| Degree Of Protection | IP20 |
| Certifications | UL/CUL listed |
| Operating Temperature - Maximum | 176 deg F |
| Mean Time Between Failures (MTBF) | 300,000 hr |
| Input Frequency - Nominal | 50/60 Hz |
| Wire Size - Maximum | 12 AWG |
| Wire Size - Minimum | 18 AWG |
| Current - Output | 10 A |
| Housing Material | Metal |
| Output Power - Rated | 240 W |
| Operating Temperature - Minimum | -13 deg F |
| NEMA Enclosure Rating | 1 |
| Current - Inrush | 60 A |
| Current - Peak | 15 A |
| Special Features | Overvoltage Protection |
| Package Quantity | 1 |
