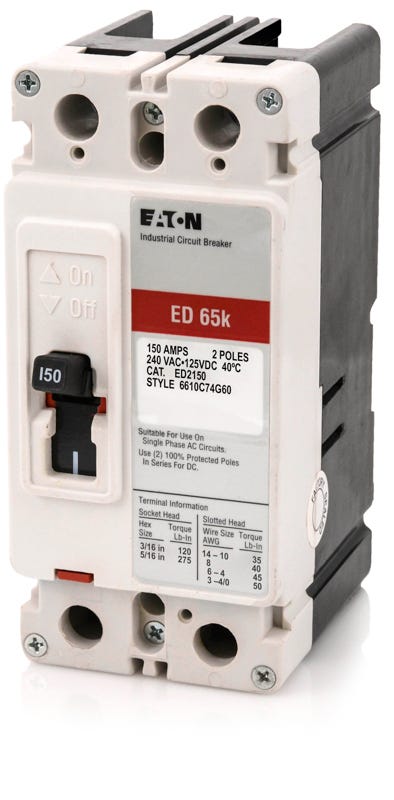

The Eaton ED2150 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 150 Amps and a voltage rating of 240VAC, 125VDC. It has an interrupting rating of 65kAIC at 240VAC, 10kAIC at 125VAC. The ED2150 has a standard pressure load terminal connection.
| Brand | Eaton |
|---|---|
| Series | ED |
| Amperage | 150A |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Contactor Type | IEC |
| Approval | UL Listed |
| Mpn | ED2150-R |
| Upc | 786679456347 |
| Gtin | 786679456347 |
