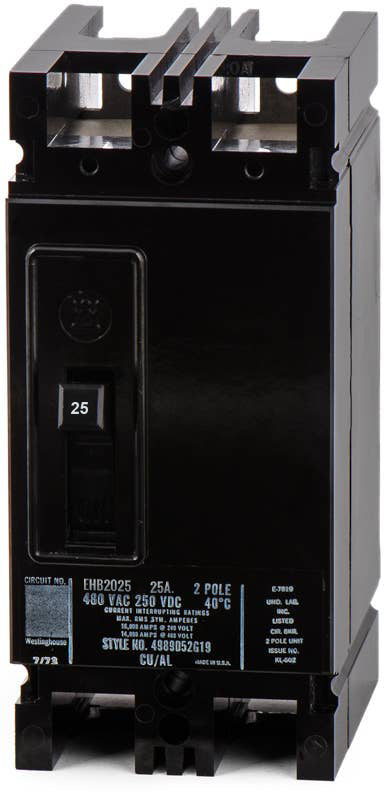

The Eaton EHB2025 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 25 Amps and a voltage rating of 240VAC. It has an interrupting rating of 14kAIC@480V. The EHB2025 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | EHB |
| Amperage | 25 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 14kAIC@480V |
| Frame Type | EHB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Temperature Rating | 40°C |
| Mpn | EHB2025 |
| Upc | 736309053644 |
