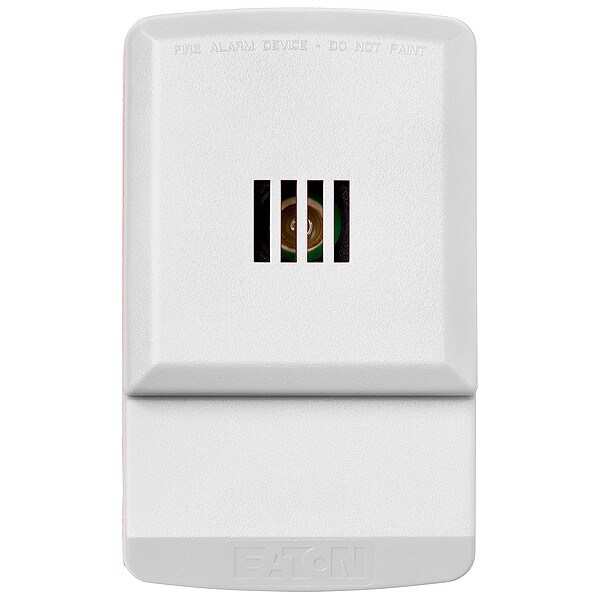

ELUXA HORN
| Item | Horn |
|---|---|
| Standards | UL Listed, ULC Listed |
| Mounting | Wall |
| Indoor/Outdoor | Indoor |
| Voltage | 12 V, 24 V |
| Includes | Mounting Plate |
| Wattage | 5 W |
| Current Drawn | 0.022 DC, 0.03 DC, 0.06 DC, 0.086 DC, 0.125 DC, 0.185 DC |
| Audible Alarm Type | Horn |
| Lamp Type | LED |
| Power Source | Not Applicable |
| Housing Color | White |
| Watts | 5 |
| Sound Pattern | Continuous, Pulse |
| Visual Indicator Type | No Visual Indicator |
| Material | Plastic |
| Housing Material | Plastic |
| Operating Temp. | 32 to 122 deg F |
| Features | Continuous T3 and T3/T4, Energy Efficient, Fire and CO Signaling in 1 Device, Low-Profile Design |
| Depth | 4-3/4 in |
| Width | 2.78 in |
| Decibels | 80 dBA |
| Color | White |
| Height | 1.3 in |
| Lens Material | Lexan |
| Product Type | Horn |
| Overall Length | 4-3/4 in |
| Overall Depth | 4-3/4 in |
| Alarm Volume @ 10 ft - Minimum | 80 dBA |
| Connection Type | Not Applicable |
| Alarm Volume @ 1 m - Maximum | Not Applicable |
| Overall Width | 2-3/4 in |
| Sound Continuity | Not Applicable |
| IP Rating | Not Applicable |
| Alarm Volume @ 1 m - Minimum | Not Applicable |
| Legend | no lettering |
| Operating Temperature - Maximum | 122 deg F |
| Vibration | Not Applicable |
| For Location | Indoor |
| Operating Temperature - Minimum | 32 deg F |
| Mounting Style | Surface Mount |
| Sound Principle | Not Applicable |
| Volume Selection | Not Applicable |
| Alarm Volume @ 10 ft - Maximum | Not Applicable |
| Operating Current | 0.185 A @ DC |
| Sound Style | Horn |
| NEMA Rating | Not Applicable |
| Includes Mounting Hardware | Mounting Hardware Included |
| For Hazardous Location | Not Applicable |
| Overall Diameter | Not Applicable |
| Control Protocol | Not Applicable |
| Number of Sound Patterns | Not Applicable |
| Country of Origin (subject to change) | Romania |
| Package Quantity | 1 |
