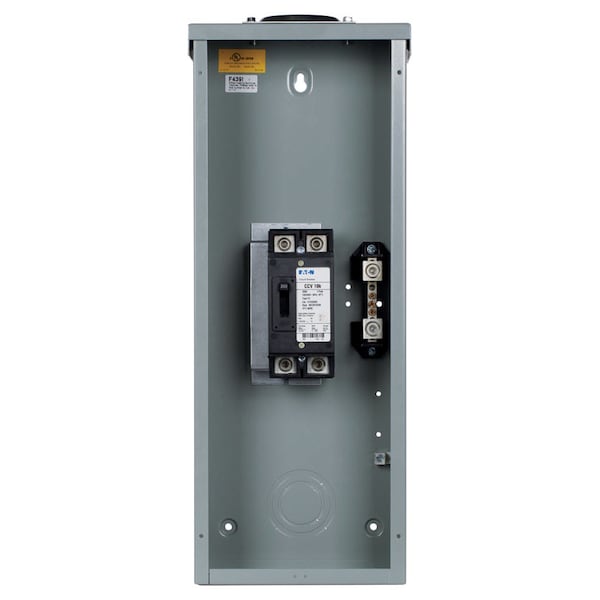

Enclosed Circuit Breaker, ECC Series, 200A, 2 Pole, 200V AC, 25kA
| Item | Enclosed Circuit Breaker |
|---|---|
| Series | ECC |
| Amps | 200A |
| Number of Poles | 2 |
| AC Voltage Rating | 200V AC |
| Max. AIR Rating | 25kA |
| Width | 9-1/2 in |
| Depth | 25 in |
| Height | 5-1/2 in |
| DC Voltage Rating | Not Rated |
| For Use With | CC Circuit Breakers |
| Max. Wire Size | 300 kcmil |
| Standards | UL 489 |
| Frame Type | CCV |
| Min. Wire Size | 2 AWG |
| Interrupt Rating | 25 kA |
| Package Quantity | 1 |
