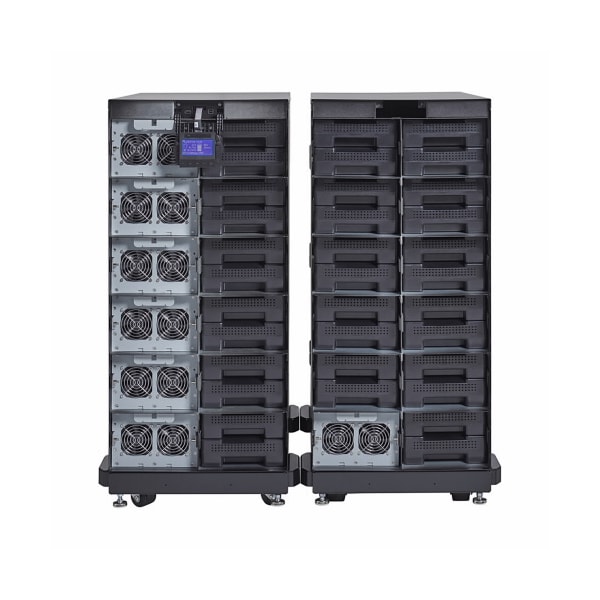

External Battery Enclosure, Eaton 9PXM UPS, Hardwired
| Item | External Battery Enclosure |
|---|---|
| For Use With | Eaton 9PXM UPS |
| Battery Connection | Hardwired |
| Color | Black, silver |
| Input Frequency Range | 60 Hz: 50 to 70 Hz, 50 Hz: 40 to 60 Hz |
| Temperature range | 0° to 40°C |
| Battery management | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| Product Width | 17-1/2 in |
| Topology | Online/Double-conversion |
| Extended Battery Capability | Yes |
| Input Power Factor | >0.99 typical |
| Product Length/Depth | 34-1/2 in |
| Relative Humidity | 5-95% non-condensing |
| Product Height | 36-1/2 in |
| Compliances | TAA Compliant |
| Input Nominal Voltage | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Certifications | IEC Rated |
| Input connection | Hardwired |
| Battery replacement | Hot-swappable internal batteries and extended battery modules (EBMs) |
| Package Contents | 9PXM 12-slot external battery enclosure|9PXM user manual|Cable connectors |
| Package Quantity | 1 |
