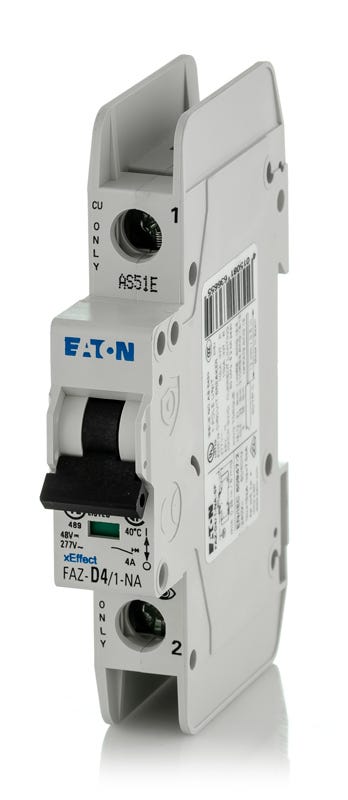

The Eaton FAZ-D4/1-NA-SP is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 4 Amps and a voltage rating of 277/480VAC, 48VDC. It has an interrupting rating of 10kAIC. The FAZ-D4/1-NA-SP has a din rail mounting type and includes LI - long time and instantaneous functions.
| Brand | Eaton |
|---|---|
| Series | FAZ-NA |
| Amperage | 4 |
| Voltage | 277/480VAC, 48VDC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Din Rail |
| Approval | UL, CSA, IEC, CE, VDE, CCC |
| Interrupting Rating | 10kAIC |
| Frame Type | FAZ |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long Time and Instantaneous |
| Terminal Connection | Line and load |
| Standards | RoHS |
| Temperature Rating | -4 to 140°F |
| Actuator Type | Toggle |
| Body Material | Nylon |
| Max Wire Size | 6 AWG |
| Min Wire Size | 18 AWG |
| Mpn | FAZ-D4/1-NA-SP |
| Upc | 4015081636655 |
