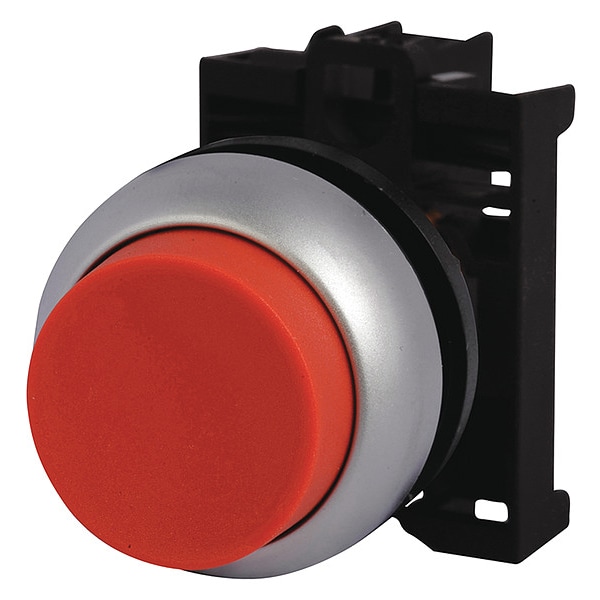

Operador de botón de descarga, no iluminado, rojo.
| Action | Momentary |
|---|---|
| Size | 22.5 mm |
| Head Material | Plastic |
| Lamp Type | Not Applicable |
| Bezel | Silver |
| Number of Operators | 1 |
| Item | Flush Push Button Operator |
| Lamp Module Type | Not Applicable |
| Type | Pushbutton |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| AC Contact Rating | 6 A @ 240 V |
| Features | Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter |
| IP Rating | IP67, IP69K |
| Series | M22 |
| DC Contact Rating | 3 A @ 24 V |
| Terminal Connection | Spring Cage |
| Product Type | Push Button Operators |
| Operating cycles | 5 million |
| Product Width | 5 in |
| Actuator Color | Red |
| Certifications | CSA Certified |
| Compliances | CE Marked |
| Operating mode | Momentary |
| Enclosure | IP69K |
| Mounting method | Flush |
| Product Height | 1-1/2 in |
| Button color | Red |
| Actuator | button, Flush |
| Environmental rating | IP67, IP69K, NEMA 4X, NEMA 13 |
| Illumination | Non-illuminated |
| Actuator function | Momentary |
| Product Length/Depth | 7 in |
| Contact configuration | 1 NO-1 NC |
| Degree of protection | NEMA 13 |
| Product Name | Eaton M22 modular pushbutton |
| Operating Temperature - Minimum | -13 deg F |
| Push Button Style | Flush |
| Overall Height | 1 in |
| Overall Depth | 2.56 in |
| Overall Width | 1 in |
| Operator Material | Plastic |
| Head Color | Red |
| Manufacturer Warranty Length | 1 yr |
| Operating Temperature - Maximum | 158 deg F |
| Operator Illumination | Non-Illuminated |
| Panel Cutout Diameter | 22 mm |
| Lamp Voltage - Maximum | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Package Quantity | 1 |
