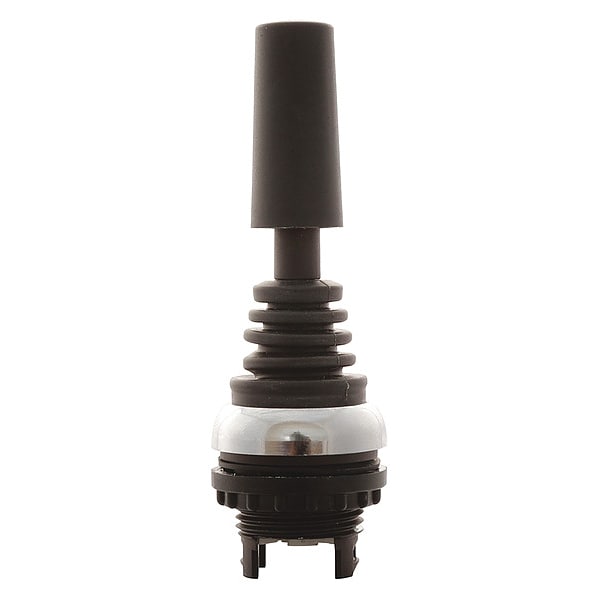

Cuatro posiciones con joystick de mamá, Sil-bzl 2 interruptores Pt.
| Item | Joystick Operator |
|---|---|
| Size | 22.5 mm |
| Joystick Material | Plastic |
| Direction of Operation | Vertical |
| IP Rating | IP67, IP69K |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed |
| Bezel | Silver |
| Series | M22 |
| Compliances | Bureau Veritas |
| Product Width | 5 in |
| Product Length/Depth | 7 in |
| Product Height | 1-1/2 in |
| Illumination | Non-illuminated |
| Contact configuration | 1 NC |
| Button color | Red |
| Certifications | CSA Certified |
| Actuator | Button, extended with guard |
| Type | Pushbutton |
| Environmental rating | IP67, IP69K, NEMA 4X, NEMA 13 |
| Actuator function | Momentary |
| Number of Positions | 2 |
| Special Features | Includes contact block mounting adapter |
| Product Name | Eaton M22 pushbutton joystick operator |
| Overall Depth | 2.77 in |
| Overall Width | 1 in |
| AC Contact Rating | 6 A @ 240 V |
| Overall Height | 1 in |
| NEMA Enclosure Rating | 1, 12, 13, 2, 3, 3R, 4, 4X |
| Manufacturer Warranty Length | 1 yr |
| Panel Cutout Diameter | 22 mm |
| Switch Action | Momentary |
| Bezel Material | Silver |
| Package Quantity | 1 |
