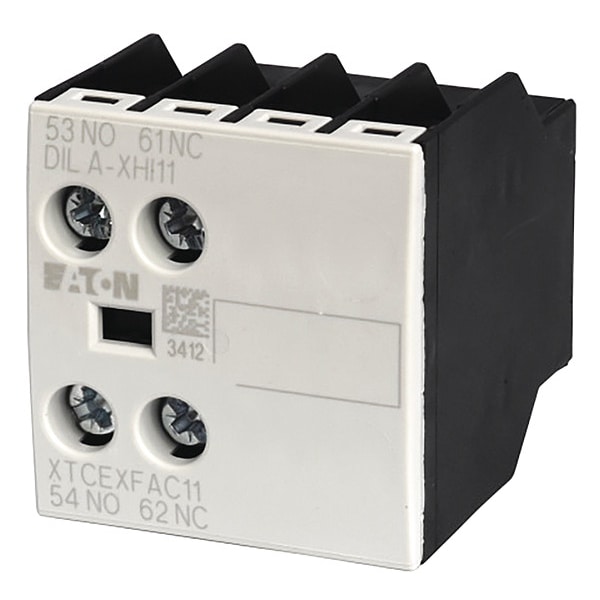

Entrada frontal auxiliar secuencial A, 1NA/1NC, para marco XT tipo B-C.
| Item | Auxiliary Contact |
|---|---|
| Type | Auxiliary Contact |
| Number of NO Aux. Contacts | 1 |
| Number of NC Aux. Contacts | 1 |
| Amps | 16 A |
| Mounting | Front |
| For Use With | XT Contactor Frame B-C |
| Number of Contacts | 2 |
| Voltage | 690 V AC/220 V DC |
| Max. Contact Blocks (No.) | 1 |
| Height | 1-1/2 in |
| Standards | IEC 60947, ATEX Compliant |
| Width | 2 in |
| Depth | 1-1/2 in |
| Contact Configuration | 1 NO-1 NC |
| Product Height | 1-1/2 in |
| Product Name | Eaton motor control auxiliary contact |
| Rated Operational Current | 6A at 220/230/240V; 3A at 380/400/415V; 1.5A at 500V |
| Terminals | Screw |
| Conventional Thermal Current | 16 A |
| Product Length/Depth | 1-1/2 in |
| Number of Poles | 2 |
| Compliances | ATEX Compliant;CE Marked;CCC Marked |
| Used With | XTRE control relays |
| Certifications | IEC 60947;EN 60947;UL Listed;CSA Certified |
| Current AC | 16 A |
| Compatible with Series | XTRE Control Relays |
| Maximum Voltage Rating | 500 V AC |
| Number of Normally Open Contacts | 1 |
| Number of Normally Closed Contacts | 1 |
| Terminal Connection Type | Screw Clamp Terminals |
| Package Quantity | 1 |
