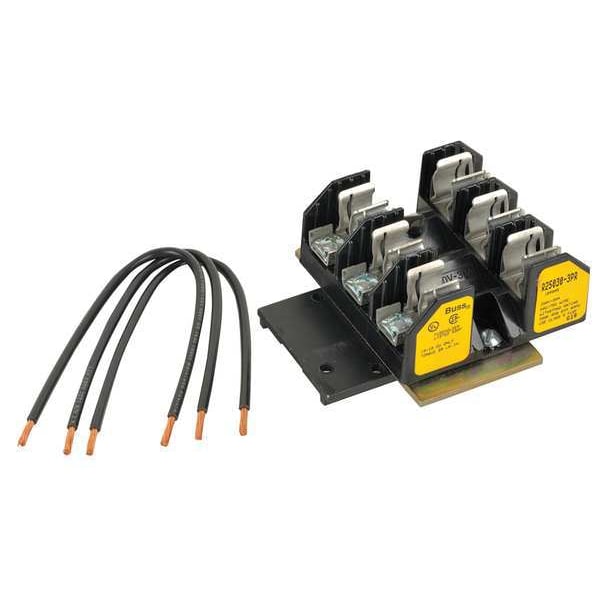

Bloque de fusibles, Montaje superior, 30A, 250V, Serie Freedom
| Item | Fuse Block |
|---|---|
| Includes | Mounting Screws |
| For Use With | Freedom Series Starters and Contactors, IEC A-K, NEMA 00-2 |
| Features | Top-Mounted |
| Accessory Type | Fuse Block |
| Voltage rating | 250 V |
| Certifications | UL Listed |
| Number Of Poles | 3 |
| Amperage Rating | 30A |
| Product Height | 3.1 in |
| Mounting method | Top |
| Product Length/Depth | 2.23 in |
| Special Features | Used with Starters and Contactors |
| Type | Accessory |
| Product Width | 3 in |
| Used with | Used with Starters and Contactors |
| Series | Class R |
| Product Name | Eaton Freedom NEMA fuse block kit |
| Compatible with Series | Class R |
| Overall Width | 3 in |
| Current AC | 30 A |
| Overall Height | 3.1 in |
| Overall Depth | 2.23 in |
| Standards | UL Listed |
| Maximum Voltage Rating | 250 V AC |
| Package Quantity | 1 |
