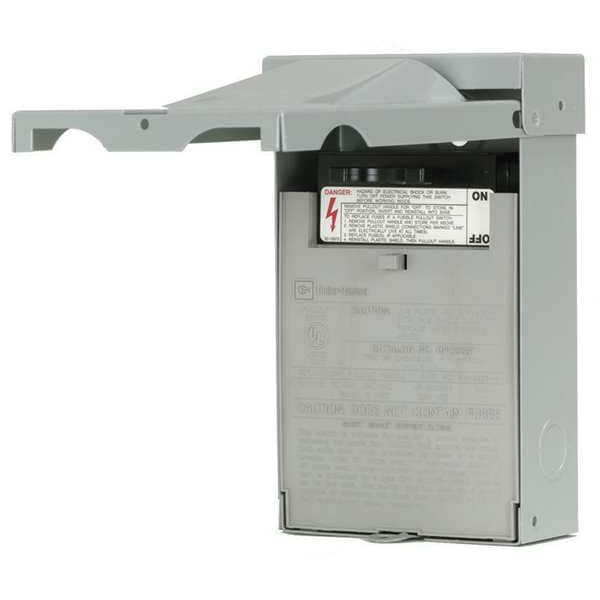

Interruptor de desconexión de aire acondicionado con fusible, 240V CA, NEMA 3R.
| Item | Air Conditioning Disconnect Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Amps | 30 |
| Voltage | 240 V AC |
| Phase | 1 |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Material | Galvanized Steel |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Contact Form | DPST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvanized Steel |
| Receptacle Type | No Receptacle Included |
| Fusible / Nonfusible | Fusible |
| Width | 5-13/32 in |
| Short Circuit Protection | Fuse |
| Max. HP @ 240V | 3 HP |
| Height | 8-45/64 in |
| For Use With | Class H Fuse |
| Depth | 3-13/64 in |
| Standards | CSA Certified, UL Listed |
| Features | 1in Knockouts On Bottom, Back, and Side, Wiring Space for Mounting with a Stud Gun (Single Keyhole, Two or Three Point Mounting), Copper-Rated Line and Load Lugs, Protective Shield, Service Entrance Rated |
| Type | Fused pullout |
| NEMA Enclosure Rating | 3 R |
| For Fuse Class | Class H |
| Current Rating | 30 A |
| Wire Size | 3 AWG, 4 AWG, 5 AWG, 6 AWG, 7 AWG, 8 AWG, 9 AWG, 10 AWG, 11 AWG, 12 AWG, 13 AWG, 14 AWG |
| For Environment | Indoor, Outdoor |
| Horsepower @ 240V AC | 3 HP |
| Switch Design | Pull-out |
| Housing Material | Galvanized Steel |
| Horsepower @ 120V AC | 2 HP |
| Interrupt rating | 10 kAIC |
| Product Length/Depth | 5.4 in |
| Amperage Rating | 30A |
| Horsepower | 2 hp at 120 V, 3 hp at 240 V |
| Product Width | 3.15 in |
| Enclosure | NEMA 3R |
| Product Height | 8.7 in |
| Voltage rating | 120/240 V |
| Certifications | UL Listed |
| Color | ANSI 61 gray |
| Product Name | Eaton air conditioning disconnect |
| Package Quantity | 1 |
