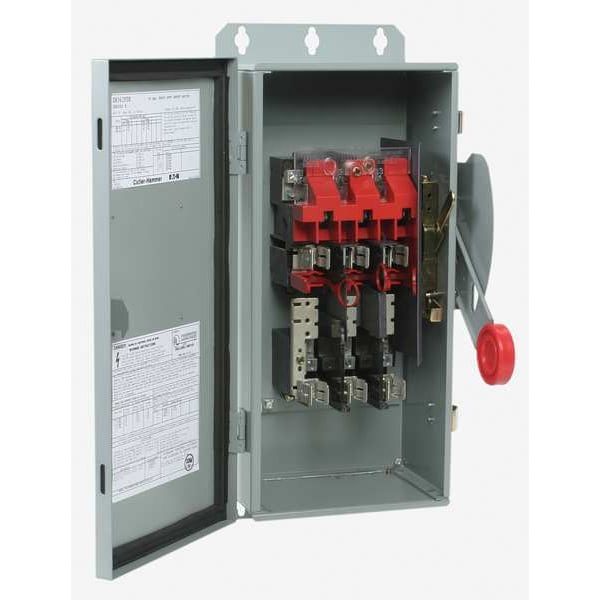

Interruptor de Seguridad Fusible, de Trabajo Pesado, 600V AC/250V DC, 3PST, 60 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 600V AC/250V DC |
| Phase | 3 |
| HP | 30 HP @ 480 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvanized Steel |
| Depth | 10 in |
| Width | 8.1 in |
| Height | 15.9 in |
| For Use With | Class H Fuse |
| Fusible / Nonfusible | Fusible |
| Standards | NEMA KS-1, UL Listed, UL98 |
| Fuse Type | Class H |
| Type | Heavy duty fusible safety switch |
| Neutral Assembly Included | No |
| Environment | Indoor, Outdoor |
| For Fuse Class | Class H, Class R |
| Horsepower @ 600V AC | 50 HP |
| Horsepower @ 480V AC | 20 HP |
| NEMA Enclosure Rating | 3R |
| Current Rating | 60 A |
| Housing Material | Steel |
| Fuse Configuration | Fusible without neutral |
| Product Name | Eaton enhanced visible blade fusible safety switch |
| Enclosure | NEMA 3R |
| Voltage Rating | 600 V |
| Hp Rating - Max | 20, 25/ 30, 50 hp (1/3PH @480, 600 V) |
| Product Height | 8-1/2 in |
| Product Width | 9-1/2 in |
| Amperage Rating | 60 A |
| Nema Rating | NEMA 3R |
| Certifications | UL Listed |
| Product Length/Depth | 16-1/2 in |
| Package Quantity | 1 |
