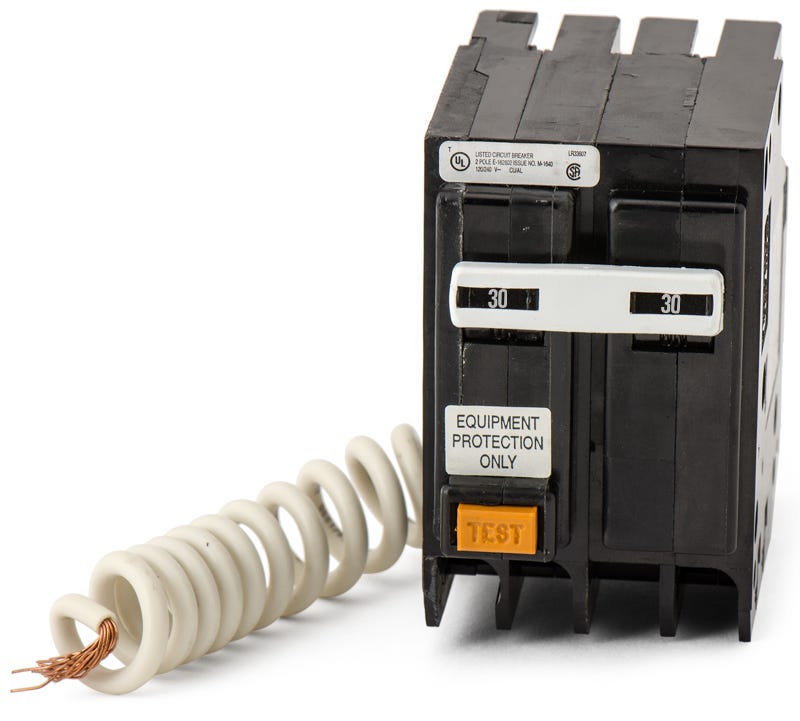

The Eaton GFEP230 is a 2 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@120V. The GFEP230 has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | GF |
| Amperage | 30 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC@120V |
| Frame Type | BR |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Wire Gauge | #14 to 4 AWG |
| For Use With | BR Load Centers |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Mpn | GFEP230 |
| Upc | 786676382557 |
