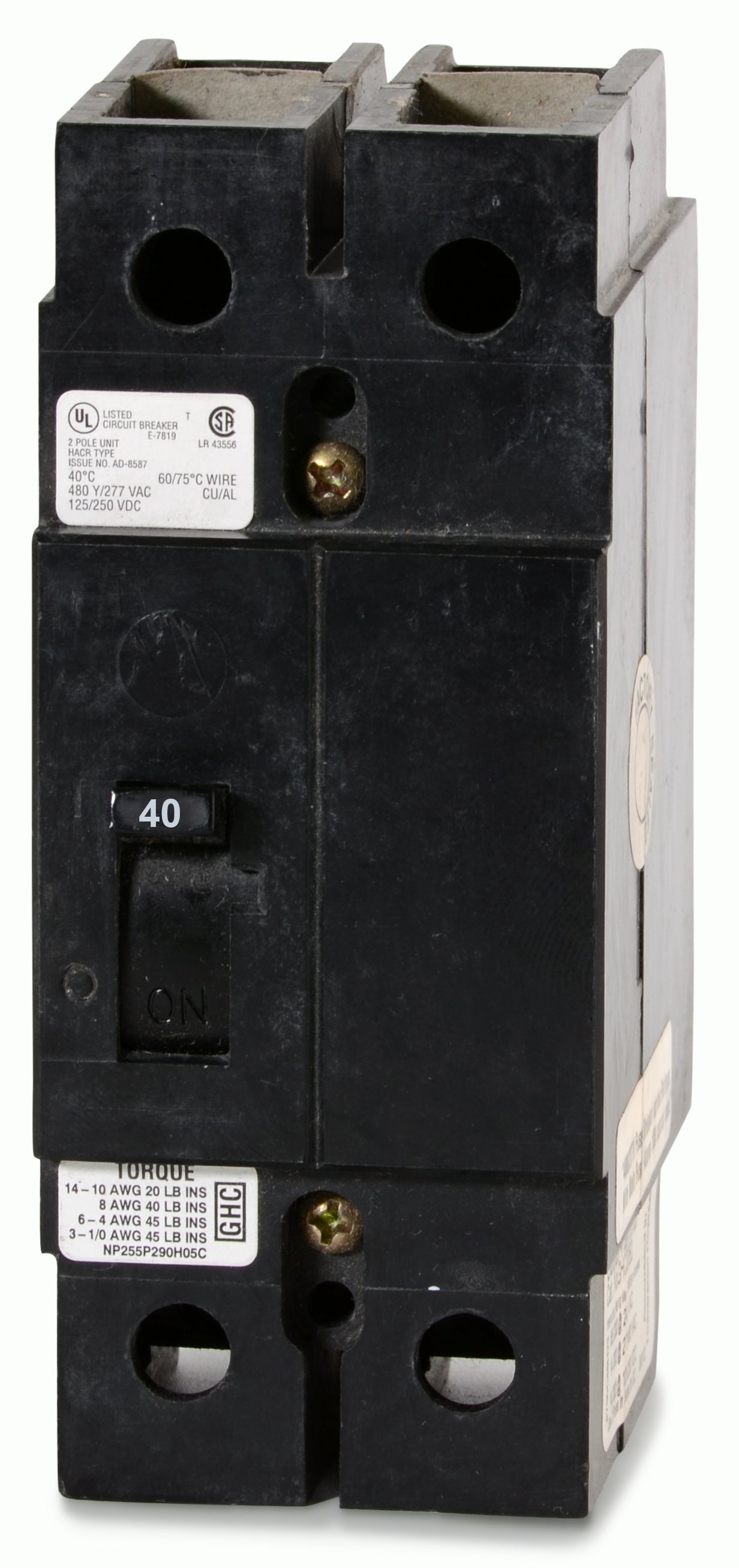

The Eaton GHC2040 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 480V. It has an interrupting rating of 14kAIC at 480V. The GHC2040 has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | GHC |
| Amperage | 40 |
| Voltage | 480 |
| Poles | 2 |
| Phase | 1 |
| Contactor Type | Magnetic |
| Interrupting Rating | 14kAIC at 480V |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Mpn | GHC2040 |
| Upc | 786679174128 |
| Gtin | 00786679174128 |
