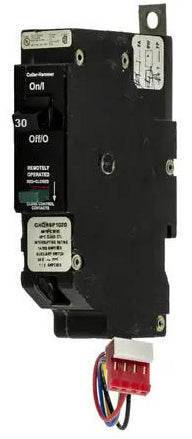

The Eaton GHQRSP1030 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 480Y/277V. It has an interrupting rating of 14kAIC at 277V. The GHQRSP1030 has a bolt-on mounting type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | GHQRS |
| Amperage | 30 |
| Voltage | 480Y/277V |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 14kAIC at 277V |
| Frame Type | GHQRSP |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long-Time and Instantaneous Trip |
| Terminal Connection | line side lug |
| For Use With | Panelboards |
| Standards | HID |
| Temperature Rating | 40 °C |
| Mpn | GHQRSP1030 |
