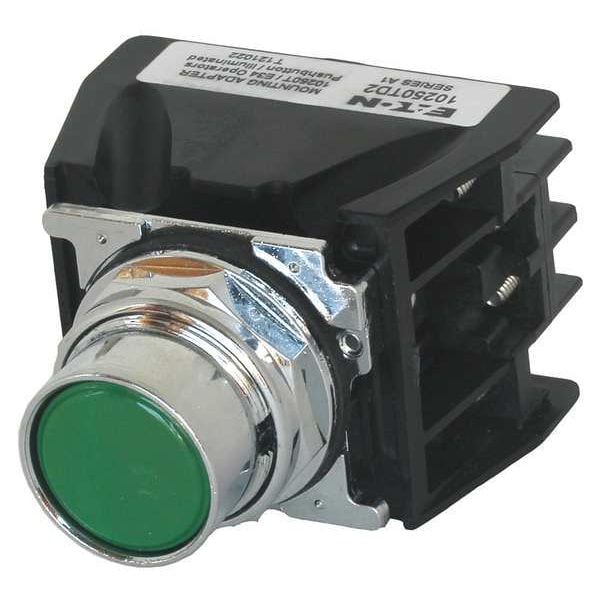

Botón pulsador para ubicaciones peligrosas con contactos, 30 mm, 1 NC, 1 NO, verde.
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Metal |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Type of Operator | Flush Push Button |
| Lamp Type | Not Applicable |
| Color | Green |
| Contact Form | 1NO/1NC |
| Bezel | Metal |
| Legend | Blank |
| Number of Operators | 1 |
| Contact Rating | 10A @ 600V AC, 2.5A @ 250V DC |
| Item | Hazardous Location Push Button |
| Bezel Material | Zinc Die Cast |
| Includes | Drainage Holes to Prevent Moisture Build-Up, Grounding Nibs Designed to Bite Through Most Enclosure Coatings |
| NEMA Contact Rating Designation | A600, Q300 |
| Standards | CE, CSA, UL Listed |
| Safety Rating | Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB and H2 (NEC 505) |
| Terminal Connection | Screw Clamp |
| IP Rating | IP65 |
| Features | Factory Sealed, Drainage Holes, Grounding Nibs |
| Rating | NEMA 3 |
| Series | 10250T |
| Lamp Module Type | Not Applicable |
| Type | Pushbutton |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 2.5 A @ 250 V |
| Product Width | 2-1/2 in |
| Degree of protection | NEMA 3R |
| Product Height | 2-3/4 in |
| Contact configuration | 1 NO-1 NC |
| Operating mode | Momentary |
| Compliances | CE Marked |
| Actuator Color | Green |
| Actuator Material | Plastic |
| Certifications | CSA Certified |
| Illumination | Non-illuminated |
| Product Length/Depth | 3-1/2 in |
| Mounting method | Flush |
| Product Name | Eaton 10250T pushbutton |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Mushroom Head Diameter | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Panel Cutout Diameter | 30 mm |
| Overall Depth | 3-1/2 in |
| Lamp Voltage - Maximum | Not Applicable |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 3R |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| Overall Height | 2-3/4 in |
| Manufacturer Warranty Length | 1 yr |
| Operator Material | Metal |
| Number of Indicator Lights | 0 |
| Operating Temperature - Maximum | 140 deg F |
| Overall Width | 2-1/2 in |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Head Color | Green |
| Push Button Style | Flush |
| Operating Temperature - Minimum | 32 deg F |
| Product Type | Push Button Operators |
| Package Quantity | 1 |
