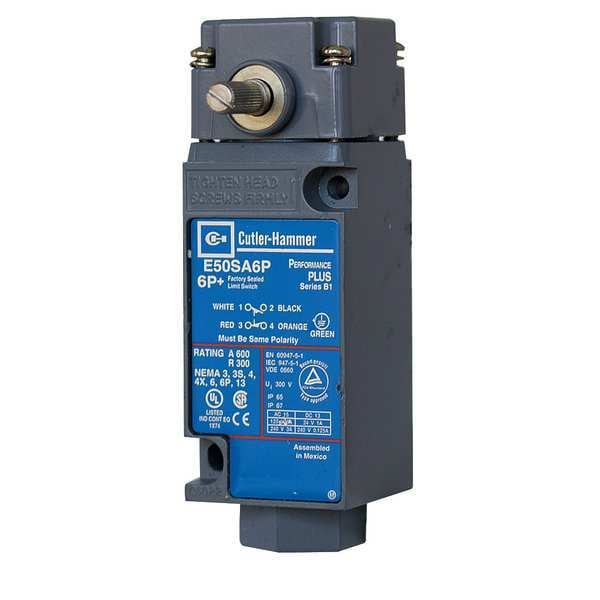

Interruptor de límite de servicio pesado, sin palanca, rotativo, 2NC/2NO, 10A @ 600V CA, Ubicación del actuador: Lateral.
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 2NC/2NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Contact Form | 2NO, 2NC |
| Contact Form - Limit Switch | 2NO, 2NC |
| Amps | 10 |
| Body Width - Limit Switch | 1.54 in |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| NEMA Rating | 3, 3S, 4X, 6P |
| Basic Actuator Style (Limit Switch) | Rotary |
| Width | 1.54 in |
| Stem Thread - Limit Switch | No Stem |
| Actuator Length - Limit Switch | 1.44 in |
| DC Contact Rating | Not Rated |
| Actuator Location (Limit Switch) | Side |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Limit Switch Style | Heavy Duty Limit Switch |
| IP Rating | 67 |
| Series | E50 |
| Travel | Operating Travel 5 Degrees , Reset Travel 6 Degrees , Total Travel 90 Degrees |
| Operating Temp. Range | 14 to 250 deg F |
| AC Contact Rating | 10 A @ 600 V |
| Actuator Location | Side |
| Depth | 2.46 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Body Depth - Limit Switch | 1.78 in |
| Boot Sealed Actuator - Limit Switch | No |
| Actuator Length | 1.44 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| Electrical Connection | 8 ft Cable |
| Standards | CE, CSA, UL |
| Movement | Rotary |
| Body Height - Limit Switch | 3.13 in |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Operating Force | 4.0 in-lb |
| Wiring Entry | 1/2 in NPT |
| Actuator Style | Rotary Head, No Lever |
| Voltage Rating | 600VAC |
| Height | 4.22 in |
| Body Style (Limit Switch) | Standard |
| Body Material | Zinc |
| Roller Width | Not Applicable |
| Differential Travel | 90 Degrees |
| Connection Type | cable |
| Features | CW (clockwise) and CCW (counterclockwise) operation; easily convertible to CW only or CCW only operation |
| Certification | UL Listed |
| Weight | 2.1 lb |
| Roller Position | Side |
| Operating Force - Maximum | 5 lbf |
| Overall Height | 4.67 in |
| Body Depth | 1.58 in |
| Overtravel | 90 Degrees |
| Operating Temperature - Maximum | 201 deg F |
| Directional Movement | CW, CCW |
| Mounting Hole Vertical Center to Center Distance | 29 mm |
| Overall Depth | 1.54 in |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 3, 4X, 3S |
| Body Width | 1.54 in |
| Body Configuration | Plug-In |
| Operating Temperature - Minimum | 10 deg F |
| Wireless Network Interface | Not Applicable |
| Body Height | 3.13 in |
| Boot Sealed Actuator | Boot Included |
| Lamp Type | No Lamp Module Included |
| Number of Mounting Holes | 2 |
| Mounting Hole Diameter | 0.2 in |
| Mounting Style | Surface |
| Action | Momentary |
| Pretravel | 5 Degrees |
| Includes Actuator | No Actuator Included |
| Operating Torque - Maximum | 3 in-lb |
| Manufacturer Warranty Length | 1 yr |
| Operating Force - Minimum | 4.5 ozf |
| Reset Travel | 2 Degrees |
| Mounting Hole Horizontal Center to Center Distance | 59 mm |
| Overall Width | 2-1/4 in |
| Total Travel | 90 Degrees |
| Package Quantity | 1 |
