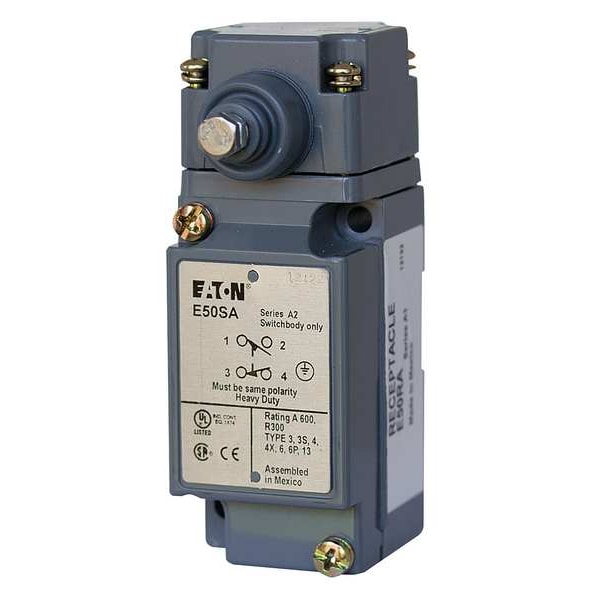

Interruptor de límite resistente, con vástago, 1NC/1NO, 10A @ 600V CA, Ubicación del actuador: Lateral
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| AC Contact Rating | 10 A @ 600 V |
| Voltage Rating | 600VAC |
| Actuator Style | Plunger, Adjustable |
| Operating Temp. Range | 14 to 250 deg F |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Contact Form - Limit Switch | 1NO, 1NC |
| Contact Form | 1NC, 1NO |
| Travel | Operating Travel 0.065 in, Reset Travel 0.03 in, Total Travel 0.25 in |
| NEMA Rating | 3, 3S, 4X, 6P |
| Body Style (Limit Switch) | Standard |
| DC Contact Rating | Not Rated |
| Width | 1.54 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Amps | 10 |
| Height | 1.09 in |
| Actuator Location | Side |
| Actuator Length - Limit Switch | 1.97 in |
| Actuator Location (Limit Switch) | Side |
| Limit Switch Style | Heavy Duty Limit Switch |
| Series | E50 |
| Basic Actuator Style (Limit Switch) | Plunger |
| IP Rating | 67 |
| Stem Thread - Limit Switch | No Stem |
| Movement | Linear |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Boot Sealed Actuator - Limit Switch | No |
| Actuator Length | 1.97 in |
| Body Depth - Limit Switch | 1.78 in |
| Depth | 2-1/4 in |
| Standards | CE, CSA, UL |
| Wiring Entry | 1/2 in NPT |
| Body Width - Limit Switch | 1.54 in |
| Operating Force | 4.0 in-lb |
| Electrical Connection | Screw Terminals |
| Body Height - Limit Switch | 3.13 in |
| Actuator Style (Limit Switch) | Plunger |
| Connection Type | Screw terminal |
| Arm Material | Metal |
| Roller Width | Not Applicable |
| Differential Travel | 0.25 in |
| Certification | UL Listed |
| Arm Width | 0.31 in |
| Body Material | Zinc |
| Arm Depth | 0.32 in |
| Weight | 1.163 lb |
| Operating Temperature - Max | 201°F |
| Product Length/Depth | 4-1/4 in |
| Product Name | Eaton E50 NEMA heavy duty plug-in limit switch |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Product Width | 3-1/8 in |
| Enclosure Material | Die cast zinc |
| Certifications | UL Listed;CSA Certified |
| Operating Temperature - Min | 14 °F |
| Compliances | CE Marked |
| Switch Type | Adjustable side pushbutton |
| Maximum DC Current | 1A |
| Contact Configuration | 1 NO-1 NC |
| Contact Rating | 10A at 240Vac, 1A at 250Vdc |
| Maximum AC Current | 10A |
| Product Height | 1-1/2 in |
| Accuracy | Within 0.003 |
| Overall Width | 3.12 in |
| Roller Position | Side |
| Body Configuration | Plug-In |
| Boot Sealed Actuator | No Boot Included |
| Number of Mounting Holes | 2 |
| Operating Force - Maximum | 4 lbf |
| Operating Temperature - Minimum | 14 deg F |
| Action | Momentary |
| Arm Length - Maximum | 0.31 in |
| Mounting Style | Surface |
| Body Height | 3.13 in |
| Directional Movement | Linear |
| Mounting Hole Horizontal Center to Center Distance | 59 mm |
| Mounting Hole Vertical Center to Center Distance | 29 mm |
| Operating Force - Minimum | 8 ozf |
| Total Travel | 0.25 in |
| Body Depth | 1.78 in |
| Plunger Adjustability | Adjustable |
| Pretravel | 0.03 in |
| Wireless Network Interface | Not Applicable |
| Overall Depth | 4-1/4 in |
| Reset Travel | 0.03 in |
| Overall Height | 1-1/2 in |
| Includes Actuator | Actuator Included |
| Operating Torque - Minimum | 4 in-lb |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 3, 4X, 3S |
| Operating Torque - Maximum | 18 in-lb |
| Overtravel | 0.25 in |
| Operating Temperature - Maximum | 201 deg F |
| Arm Adjustability | Adjustable |
| Mounting Hole Diameter | 0.2 in |
| Lamp Type | No Lamp Module Included |
| Manufacturer Warranty Length | 1 yr |
| Body Width | 1.54 in |
| Package Quantity | 1 |
