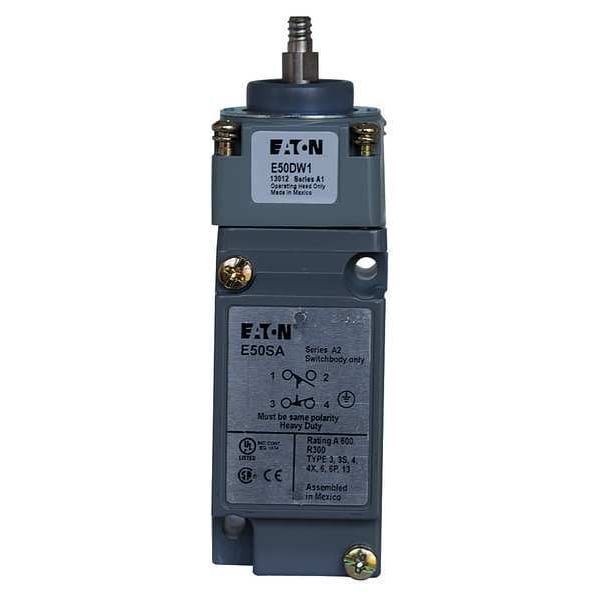

Interruptor de límite de servicio pesado, palanca oscilante, 2NC/2NO, 10A @ 600V AC, Ubicación del actuador: Superior
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Wobble Stick |
| Actuator Style - Limit Switch | Wobble Stick |
| Contact Form- Switches | 2NC/2NO |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Boot Sealed Actuator (Limit Switch) | No |
| Actuator Length - Limit Switch | 1.54 in |
| Actuator Location | Top |
| Actuator Style | Wobble Stick Head |
| Series | E50 |
| Electrical Connection | Screw Terminals |
| Body Style (Limit Switch) | Standard |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| Operating Force | 2.0 in-lb |
| NEMA Rating | 3, 3S, 4X, 6P |
| Body Depth - Limit Switch | 1.78 in |
| Actuator Length | 1.54 in |
| Amps | 10 |
| Limit Switch Style | Heavy Duty Limit Switch |
| Contact Form - Limit Switch | 2NO, 2NC |
| Basic Actuator Style (Limit Switch) | Wobble Stick |
| Width | 1.54 in |
| Body Height - Limit Switch | 3.13 in |
| AC Contact Rating | 10 A @ 600 V |
| Travel | Operating Travel 10 Degrees , Reset Travel 6 Degrees , Total Travel 15 Degrees |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Actuator Style (Limit Switch) | Wobble Stick |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Boot Sealed Actuator - Limit Switch | No |
| Contact Form | 2NO, 2NC |
| Movement | Rotary |
| Stem Thread - Limit Switch | No Stem |
| IP Rating | 67 |
| Height | 4.61 in |
| Depth | 1.79 in |
| Standards | CE, CSA, UL |
| Actuator Location (Limit Switch) | Top |
| Body Width - Limit Switch | 1.54 in |
| Voltage Rating | 600VAC |
| DC Contact Rating | Not Rated |
| Wiring Entry | 1/2 in NPT |
| Operating Temp. Range | 14 to 250 deg F |
| Certification | UL Listed |
| Connection Type | Screw terminal |
| Differential Travel | 15 Degrees |
| Roller Width | Not Applicable |
| Weight | 1.1063 lb |
| Overall Width | 1.78 in |
| Arm Length - Maximum | Not Applicable |
| NEMA Enclosure Rating | 4, 13, 1, 6, 6P, 3, 4X, 3S |
| Operating Temperature - Maximum | 250 deg F |
| Includes Actuator | No Actuator Included |
| Manufacturer Warranty Length | 1 yr |
| Operating Temperature - Minimum | 14 deg F |
| Arm Length - Minimum | Not Applicable |
| Pretravel | 5 Degrees |
| Reset Travel | 6 Degrees |
| Roller Position | Top |
| Overall Depth | 1.54 in |
| Directional Movement | Omnidirectional |
| Overall Height | 4.93 in |
| Total Travel | 15 Degrees |
| Operating Torque | 2 in-lb |
| Action | Momentary |
| Package Quantity | 1 |
