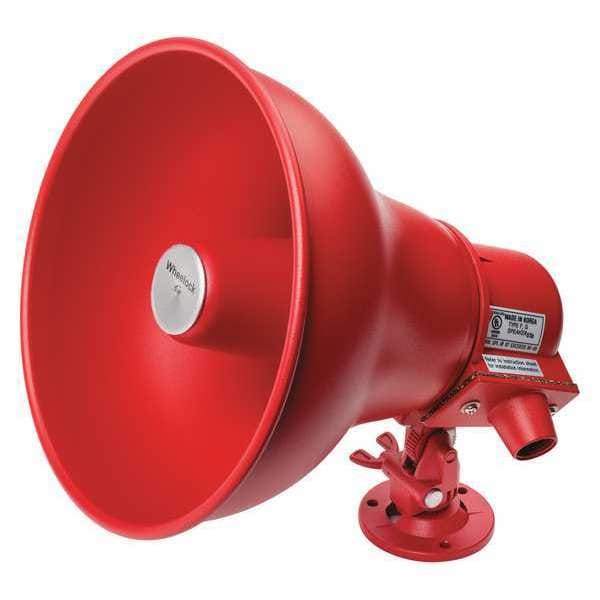

Horn, Red, Indoor/Outdoor, 102dB, 15W
| Item | Horn |
|---|---|
| Housing Material | Steel |
| Mounting | Wall |
| Amps | N/A |
| Color | Red |
| Audible Alarm Type | Fire Alarm |
| Voltage | 25/70 Vrms |
| Standards | CSFM Compliant, UL Listed |
| Indoor/Outdoor | Indoor, Outdoor |
| Decibels | 93 to 102dB |
| Sound Pattern | Continuous, Pulse |
| Height | 8-3/4 in |
| Vibrating | No |
| Width | 7.8906 in |
| Operating Temp. | 33 Degrees to 120 Degrees F |
| Depth | 9.3281 in |
| Visual Indicator Type | No Visual Indicator |
| Watts | 0.9, 15 |
| Power Source | Not Applicable |
| Features | Surface-Mounting |
| Material | Steel |
| Product Type | Horn |
| Wattage | 15 W |
| Connection Type | Not Applicable |
| Alarm Volume @ 1 m - Minimum | Not Applicable |
| Overall Length | 8-3/4 in |
| Volume Selection | Not Applicable |
| Overall Width | 7-7/8 in |
| Number of Sound Patterns | Not Applicable |
| Sound Style | Horn |
| NEMA Rating | Not Applicable |
| Alarm Volume @ 10 ft - Minimum | Not Applicable |
| Overall Depth | 9-11/32 in |
| Control Protocol | Not Applicable |
| Legend | Not Applicable |
| Alarm Volume @ 1 m - Maximum | Not Applicable |
| Vibration | No Vibration |
| Sound Continuity | Not Applicable |
| Includes Mounting Hardware | Not Applicable |
| Alarm Volume @ 10 ft - Maximum | Not Applicable |
| IP Rating | Not Applicable |
| For Location | Indoor, Outdoor |
| For Hazardous Location | Not Applicable |
| Operating Temperature - Minimum | 33 deg F |
| Mounting Style | Not Applicable |
| Operating Temperature - Maximum | 120 deg F |
| Operating Voltage | 25/70V |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
