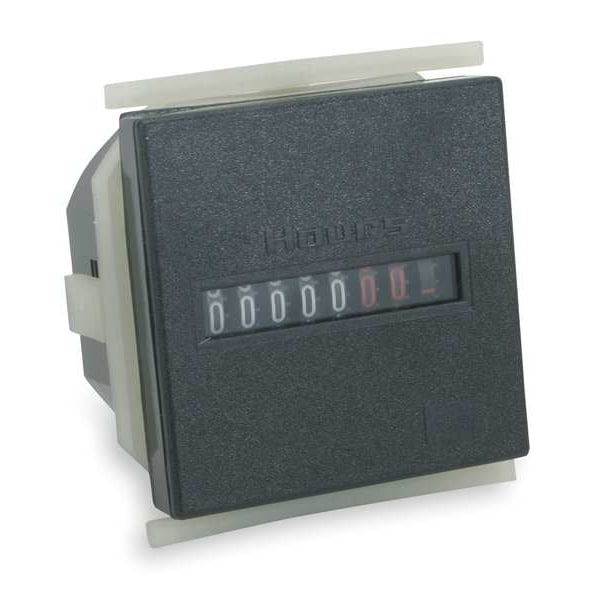

Contador de horas, cuadrado, 7 dígitos, 100-130VAC.
| Item | Hour Meter |
|---|---|
| Display Type | Electromechanical |
| Reset Type | No Reset |
| Display Units | Hours, Tenths |
| Operating Voltage | 120V AC |
| Number of Digits | 7 |
| Bezel Face Shape | Square |
| Bezel Face Size | 1.89 in x 1.89 in |
| Bezel Face Type | Panel Mount |
| Time Range | 0 to 99999.99 |
| Width | 1.89 in |
| Ambient Temp. Range | 5 to 122 deg F |
| Terminal Type | Screw |
| Elapsed Time To | 99,999.99 |
| Mounting Method | DIN Rail Adapter T4848DINADAPT |
| NEMA Rating | 4 |
| Material of Construction | Plastic |
| Hz | 50 Hz |
| Fits | 1.77 in x 1 .77 in |
| Length | 1.89 in |
| Bezel To Back Length | 1.1 in |
| Temp. Range | 5 to 122 deg F |
| Depth | 0.35 in |
| Length (Straight Wireway) | 1.89 in |
| Height | 5 in |
| Standards | UL |
| Mounting | Snap-in |
| Certifications | UL Recognized |
| Product Length/Depth | 1-3/4 in |
| Application | UV lamps, Display panels in cars, Respiratory ventilators |
| Model | Elapsed time hour/minute |
| Product Name | Eaton time meter |
| Size | 48 mm x 48 mm |
| Product Height | 2-1/4 in |
| Product Width | 2.25 in |
| Display Span - Maximum | 99,999.99 |
| Bezel Face Height | 1-7/8 in |
| Bezel Face Width | 1-7/8 in |
| Cutout DIN Size | 0.125 |
| Bezel Face Diameter | Not Applicable |
| Counter Display Type | Analog |
| Operating Temperature - Maximum | 122 deg F |
| Cutout Height | 1-3/4 in |
| Hour Unit Increment | Tenth |
| Mounting Style | Panel |
| Operating Temperature - Minimum | 5 deg F |
| Mount Securing Method | DIN Rail |
| Input Voltage - Minimum | 100 V |
| Input Voltage - Maximum | 130 V |
| Overall Width | 2-1/4 in |
| Overall Depth | 1-3/4 in |
| NEMA Enclosure Rating | 4 |
| Overall Diameter | Not Applicable |
| Cutout Width | 1-3/4 in |
| Overall Height | 2-1/4 in |
| Package Quantity | 1 |
