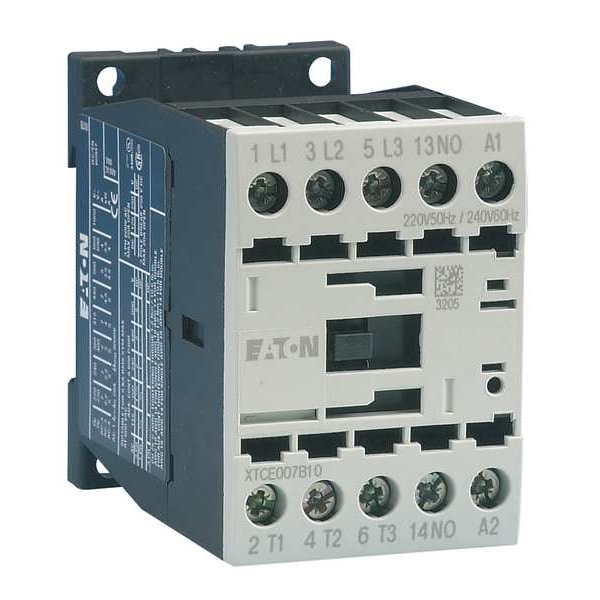

Contactador magnético IEC, 3 Polos, 120 V CA, 15 A, Reversión: No
| Full Load Amps-Inductive | 15 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 22 A |
| Action | Non-Reversing |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 3 |
| HP @ 1 Phase - 120V | 1 hp |
| HP @ 1 Phase - 240V | 3 hp |
| Height | 1.77 in |
| Width | 1.77 in |
| HP @ 3 Phase - 208V | 5 hp |
| Depth | 2.95 in |
| HP @ 3 Phase - 240V | 5 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 10 hp |
| Aux. Contact Configuration | 1NO |
| Hz | 50/60 |
| Standards | CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Frame / Series / Class / Code | Frame B |
| Auxiliary Contact Form | 1NO |
| NEMA Size | Not Applicable |
| Series | XT |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Product Height | 2 in |
| Compliances | CE Marked |
| Certifications | UL Listed;CSA Certified;IEC 60947;EN 60947 |
| Product Name | Eaton XT IEC contactor |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Overall Height | 2.68 in |
| Embedded Surge Suppressor | Yes |
| Maximum Operating Temperature | 122 deg F |
| Horsepower @ Three Phase - 240V AC | 5 HP |
| NEMA Enclosure Material | Not Applicable |
| Mounting Style | DIN Rail, Panel |
| Maximum Voltage Rating | 690 V AC |
| Mechanical Operating Durability | 10,000,000 |
| Number of Auxillary Contacts | 1 |
| Overall Width | 1.77 in |
| Response Time | Less Than12 msec (DC Operated Opening Delay), Less Than18 msec (AC Operated Opening Delay), Less Than21 msec (AC Operated Closing Delay), Less Than31 msec (DC Operated Opening Delay) |
| Frame Size | B |
| Coil Voltage | 110/120V AC |
| Reversing Capability | Non-Reversing |
| Mounting Hole Distance - Width | 1.38 in |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Contactor Style | IEC |
| Overall Depth | 2.95 in |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Mounting Hole Distance - Height | 2.36 in |
| Horsepower @ Three Phase - 208V AC | 5 HP |
| Full Load Current - Resistive | 22 A |
| NEMA Enclosure Rating | No Enclosure |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Electrical Operating Durability | 1,200,000 |
| Terminal Connection Type | Screw Terminals |
| Mounting Hole Diameter | 0.16 in |
| Minimum Operating Temperature | -13 deg F |
| Includes Auxiliary Contacts | Yes |
| Full Load Current - Inductive | 15 A |
| Package Quantity | 1 |
