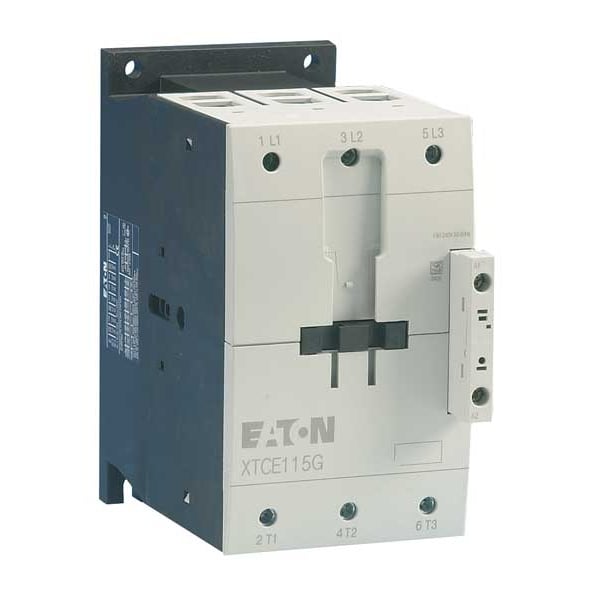

Contactador magnético IEC, 3 polos, 120 V CA, 170 A, Reversión: No
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 170 A |
| Full Load Amps-Resistive | 275 A |
| Action | Non-Reversing |
| Type | Full voltage non-reversing contactor |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 30 |
| HP @ 1 Phase - 120V | 10 hp |
| HP @ 1 Phase - 240V | 30 hp |
| Height | 3.54 in |
| HP @ 3 Phase - 208V | 40 hp |
| Width | 3.54 in |
| Depth | 6.26 in |
| HP @ 3 Phase - 240V | 60 hp |
| HP @ 3 Phase - 575V | 125 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 125 hp |
| Aux. Contact Configuration | No Auxiliary Contacts |
| Hz | 50/60 |
| Standards | CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Frame / Series / Class / Code | Frame G |
| NEMA Size | Not Applicable |
| Series | XT |
| Auxiliary Contact Form | Auxiliary Contacts Not Included |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Product Length/Depth | 7 in |
| Product Width | 7 in |
| Contact Configuration | 0 NO, 0 NC |
| Amperage Rating | 170 A |
| Compliances | CE Marked |
| Certifications | UL Listed;CSA Certified;IEC 60947;EN 60947 |
| Frequency Rating | 50-60 Hz |
| Hp Rating - Max | 10, 25, 30/ 40, 60, 125, 125 hp (1/3PH @115,200,230/200,230,460,575 V) |
| Product Height | 4 in |
| Coil Voltage | 110/120V AC |
| Product Name | Eaton XT IEC contactor |
| Frame Size | G |
| Horsepower @ Single Phase - 120V AC | 10 HP |
| Overall Height | 4 in |
| Electrical Operating Durability | 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie) |
| Horsepower @ Single Phase - 240V AC | 30 HP |
| Mechanical Operating Durability | 10,000,000 |
| Maximum Voltage Rating | 690 V AC |
| Horsepower @ Three Phase - 480V AC | 125 HP |
| Mounting Style | DIN Rail, Panel |
| Maximum Operating Temperature | 122 deg F |
| Embedded Surge Suppressor | Yes |
| Mounting Hole Distance - Width | 2.79 in |
| Frequency | 50/60 Hz |
| Mounting Hole Diameter | 0.24 in |
| Minimum Operating Temperature | -13 deg F |
| Overall Depth | 7 in |
| Reversing Capability | Non-Reversing |
| Terminal Connection Type | Screw Terminals |
| Contactor Style | IEC |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Distance - Height | 6.14 in |
| Full Load Current - Inductive | 170 A |
| Full Load Current - Resistive | 275 A |
| Response Time | Less Than30 msec (DC Operated Opening Delay), Less Than33 msec (AC Operated Closing Delay), Less Than35 msec (DC Operated Closing Delay), Less Than41 msec (AC Operated Opening Delay) |
| Horsepower @ Three Phase - 208V AC | 40 HP |
| Number of Auxillary Contacts | 0 |
| NEMA Enclosure Material | Not Applicable |
| Overall Width | 7 in |
| Horsepower @ Three Phase - 240V AC | 60 HP |
| Horsepower @ Three Phase - 600V AC | 125 HP |
| Includes Auxiliary Contacts | No |
| Package Quantity | 1 |
