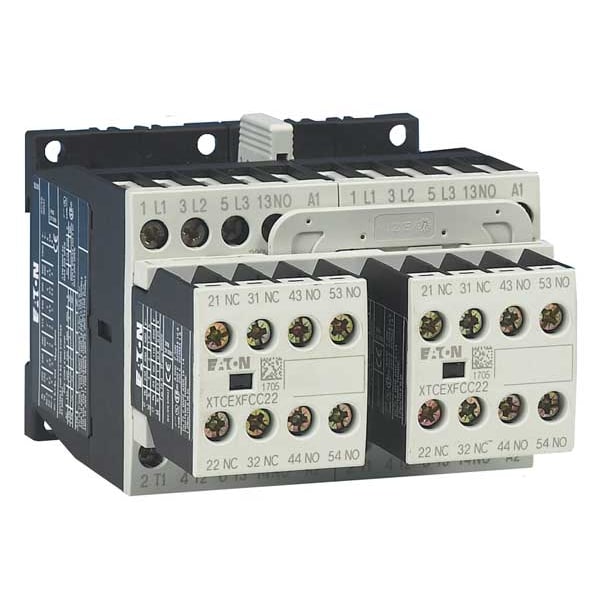

Contactador magnético IEC, 3 polos, 120 V CA, 7 A, Inversión: Sí
| Full Load Amps-Inductive | 7 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 22 A |
| Action | Reversing |
| Type | Full voltage reversing contactor |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 230V | 1 |
| HP @ 1 Phase - 120V | 1/4 hp |
| HP @ 1 Phase - 240V | 1 hp |
| Height | 3.54 in |
| Width | 3.54 in |
| HP @ 3 Phase - 208V | 1 1/2 hp |
| HP @ 3 Phase - 575V | 5 hp |
| HP @ 3 Phase - 240V | 2 hp |
| Depth | 4.92 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 3 hp |
| Aux. Contact Configuration | 1NC, 2NO |
| Hz | 50/60 |
| Standards | UL Listed |
| Auxiliary Contact Form | 2NO/2NC |
| Frame / Series / Class / Code | Frame B |
| NEMA Size | Not Applicable |
| Series | XT |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Coil Voltage | 110/120V AC |
| Contact Configuration | 2 NO, 2 NO |
| Frequency Rating | 50-60 Hz |
| Product Height | 28 in |
| Amperage Rating | 7 A |
| Product Length/Depth | 21 in |
| Certifications | UL Listed |
| Product Name | Eaton XT IEC contactor |
| Product Width | 22 in |
| Hp Rating - Max | 0.25, 1/ 1.25, 2, 3, 5 hp (1/3PH @115,230/200,230,460,575 V) |
| Frame Size | B |
| Embedded Surge Suppressor | Yes |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Mounting Hole Distance - Width | 1.38 in |
| Minimum Operating Temperature | -13 deg F |
| Horsepower @ Three Phase - 480V AC | 3 HP |
| Overall Depth | 21 in |
| Full Load Current - Inductive | 7 A |
| Horsepower @ Single Phase - 120V AC | 0.25 HP |
| Horsepower @ Three Phase - 240V AC | 2 HP |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Overall Height | 28 in |
| Maximum Operating Temperature | 122 deg F |
| Contactor Style | IEC |
| Number of Auxillary Contacts | 4 |
| Mounting Style | DIN Rail, Panel |
| NEMA Enclosure Rating | No Enclosure |
| NEMA Enclosure Material | Not Applicable |
| Includes Auxiliary Contacts | Yes |
| Mounting Hole Distance - Height | 2.36 in |
| Frequency | 50/60 Hz |
| Reversing Capability | Reversing |
| Overall Width | 22 in |
| Mounting Hole Diameter | 0.16 in |
| Full Load Current - Resistive | 22 A |
| Horsepower @ Three Phase - 208V AC | 1.25 HP |
| Package Quantity | 1 |
