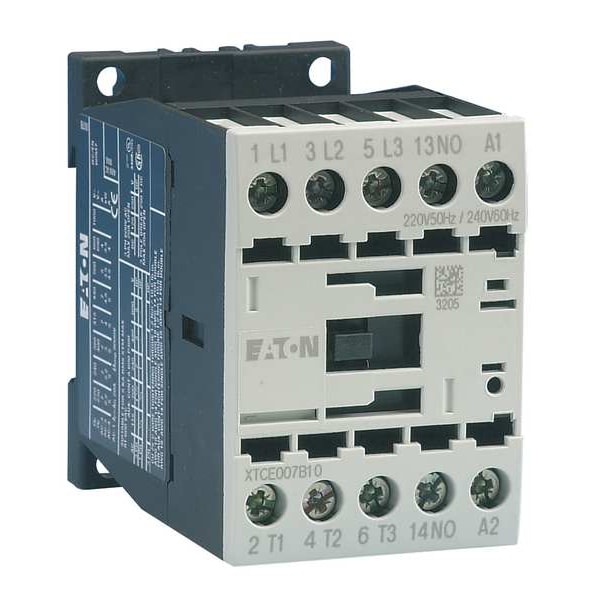

Contacto magnético IEC, 3 polos, 208 V CA, 9 A, Reversión: No
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 9 A |
| Full Load Amps-Resistive | 22 A |
| Action | Non-Reversing |
| Type | Full voltage non-reversing contactor |
| Number of Poles | 3 |
| Coil Volts | 208 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 1/2 hp |
| HP @ 1 Phase - 230V | 1.5 |
| HP @ 1 Phase - 240V | 1 1/2 hp |
| Height | 1.77 in |
| Width | 1.77 in |
| HP @ 3 Phase - 208V | 3 hp |
| HP @ 3 Phase - 240V | 3 hp |
| Depth | 2.95 in |
| HP @ 3 Phase - 575V | 7 1/2 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 5 hp |
| Aux. Contact Configuration | 1NC |
| Hz | 60 |
| Standards | CSA, UL Listed |
| Auxiliary Contact Form | 1NC |
| Frame / Series / Class / Code | Frame B |
| NEMA Size | Not Applicable |
| Series | XT |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Frequency Rating | 60 Hz |
| Amperage Rating | 9 A |
| Hp Rating - Max | 0.5, 1, 1.25/ 3, 3, 5, 7.5 hp (1/3PH @115,200,230/200,230,460,575 V) |
| Contact Configuration | 1 NC |
| Coil Voltage | 208V AC |
| Product Width | 3 in |
| Product Height | 2 in |
| Certifications | UL Listed;CSA Certified |
| Product Length/Depth | 3 in |
| Product Name | Eaton XT IEC contactor |
| Mounting Style | DIN Rail, Panel |
| Frequency | 60 Hz |
| Overall Width | 3 in |
| Mechanical Operating Durability | 10,000,000 |
| Maximum Voltage Rating | 690 V AC |
| Full Load Current - Inductive | 9 A |
| Overall Depth | 3 in |
| Full Load Current - Resistive | 22 A |
| Contactor Style | IEC |
| Minimum Operating Temperature | -13 deg F |
| Horsepower @ Single Phase - 120V AC | 0.5 HP |
| Horsepower @ Three Phase - 600V AC | 7.5 HP |
| Terminal Connection Type | Screw Terminals |
| Frame Size | B |
| Electrical Operating Durability | 1000 (AC-3 400V Ie), 300 (AC-4 400V Ie), 800 (AC-1 400V Ie) |
| Overall Height | 2 in |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| NEMA Enclosure Material | Not Applicable |
| Reversing Capability | Non-Reversing |
| Horsepower @ Single Phase - 240V AC | 1.25 HP |
| Embedded Surge Suppressor | Yes |
| Number of Auxillary Contacts | 1 |
| Maximum Operating Temperature | 122 deg F |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| NEMA Enclosure Rating | No Enclosure |
| Response Time | Less Than12 msec (DC Operated Opening Delay), Less Than18 msec (AC Operated Opening Delay), Less Than21 msec (AC Operated Closing Delay), Less Than31 msec (DC Operated Opening Delay) |
| Package Quantity | 1 |
