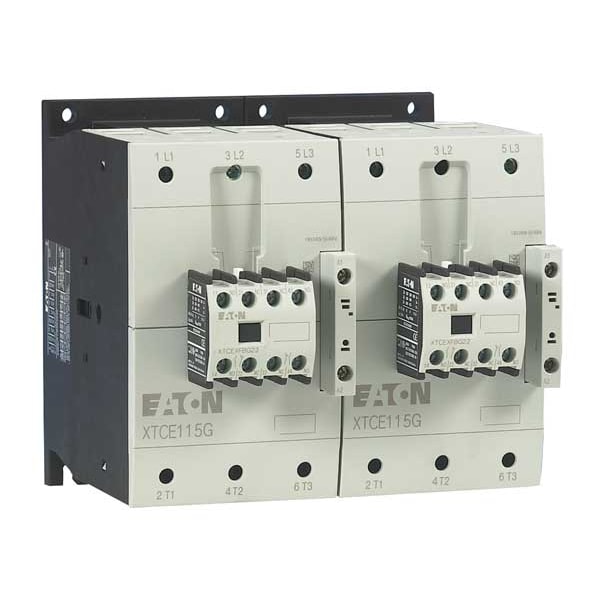

Contacto magnético IEC, 3 polos, 24 V CA, 170 A, Reversión: Sí
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 170 A |
| Action | Reversing |
| Full Load Amps-Resistive | 275 A |
| Type | Full voltage reversing contactor |
| Number of Poles | 3 |
| Coil Volts | 24 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 10 hp |
| HP @ 1 Phase - 230V | 40 |
| HP @ 1 Phase - 240V | 40 hp |
| Height | 3.54 in |
| Width | 3.54 in |
| HP @ 3 Phase - 208V | 40 hp |
| HP @ 3 Phase - 575V | 125 hp |
| HP @ 3 Phase - 240V | 60 hp |
| Depth | 6.26 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 125 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO/1NC |
| Standards | CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Frame / Series / Class / Code | Frame G |
| NEMA Size | Not Applicable |
| Series | XT |
| IP Rating | IP20 |
| Electrical Connection | Screw Terminals |
| Product Width | 18-1/2 in |
| Compliances | CE Marked |
| Product Height | 8-1/4 in |
| Frame Size | G |
| Coil Voltage | 24V AC |
| Product Length/Depth | 10-1/2 in |
| Amperage Rating | 170 A |
| Frequency Rating | 50-60 Hz |
| Certifications | UL Listed;CSA Certified;EN 60947;IEC 60947 |
| Hp Rating - Max | 10, 25, 30/ 40, 60, 125, 125 hp (1/3PH @115,200,230/200,230,460,575 V) |
| Contact Configuration | 1 NO, 1 NC |
| Product Name | Eaton XT IEC contactor |
| Mounting Style | DIN Rail, Panel |
| Horsepower @ Three Phase - 480V AC | 125 HP |
| Number of Auxillary Contacts | 2 |
| Full Load Current - Inductive | 170 A |
| Full Load Current - Resistive | 275 A |
| Maximum Operating Temperature | 122 deg F |
| Horsepower @ Single Phase - 240V AC | 30 HP |
| Horsepower @ Single Phase - 120V AC | 10 HP |
| Frequency | 50/60 Hz |
| Reversing Capability | Reversing |
| Contactor Style | IEC |
| NEMA Enclosure Material | Not Applicable |
| Minimum Operating Temperature | -13 deg F |
| Overall Width | 18-1/2 in |
| Horsepower @ Three Phase - 600V AC | 125 HP |
| Mounting Hole Diameter | 0.27 in |
| Terminal Connection Type | Screw Terminals |
| Mounting Hole Distance - Height | 11.77 in |
| Horsepower @ Three Phase - 208V AC | 40 HP |
| Overall Depth | 10-1/2 in |
| Overall Height | 8-1/4 in |
| NEMA Enclosure Rating | No Enclosure |
| Includes Auxiliary Contacts | Yes |
| Mounting Hole Distance - Width | 6.97 in |
| Horsepower @ Three Phase - 240V AC | 60 HP |
| Embedded Surge Suppressor | Yes |
| Package Quantity | 1 |
