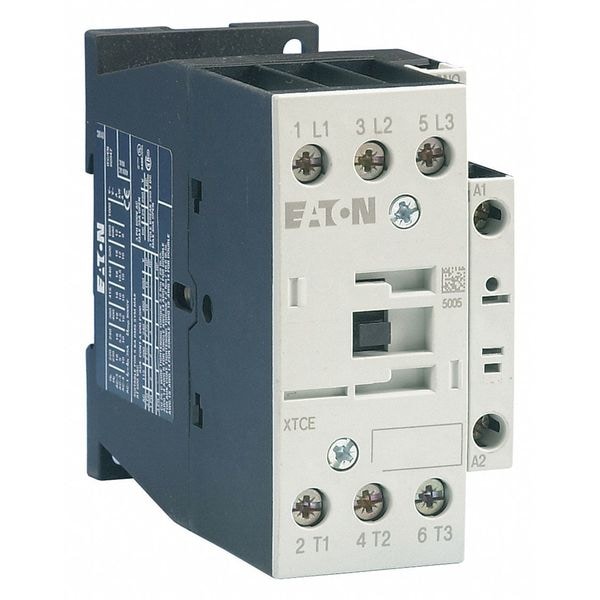

Contactores magnéticos IEC, 3 polos, 24 V CC, 25 A, Inversión: No.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 25 A |
| Full Load Amps-Resistive | 45 A |
| Action | Non-Reversing |
| Type | Full voltage non-reversing contactor |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | No |
| HP @ 1 Phase - 230V | 5 |
| HP @ 1 Phase - 120V | 2 hp |
| Height | 1.77 in |
| HP @ 1 Phase - 240V | 5 hp |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| Width | 1.77 in |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 575V | 20 hp |
| Depth | 3.82 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 15 hp |
| Aux. Contact Configuration | 1NC |
| Frame / Series / Class / Code | Frame C |
| Standards | CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Auxiliary Contact Form | 1NC |
| NEMA Size | Not Applicable |
| Series | XT |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Frame Size | C |
| Amperage Rating | 25 A |
| Product Height | 1-1/2 in |
| Contact Configuration | 1 NC |
| Product Length/Depth | 4 in |
| Hp Rating - Max | 2, 3, 5/ 7.5, 10, 15, 20 hp (1/3PH @115,200,230/200,230,460,575 V) |
| Coil Voltage | 24-27V DC |
| Certifications | UL Listed;CSA Certified;IEC 60947;EN 60947 |
| Compliances | CE Marked |
| Product Width | 3-1/2 in |
| Product Name | Eaton XT IEC contactor |
| Mechanical Operating Durability | 10,000,000 |
| Electrical Operating Durability | 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie) |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Distance - Height | 2.95 in |
| Contactor Style | IEC |
| Minimum Operating Temperature | -13 deg F |
| Overall Width | 3-1/2 in |
| Overall Height | 1-1/2 in |
| Terminal Connection Type | Screw Terminals |
| Frequency | 50/60 Hz |
| Mounting Hole Diameter | 0.16 in |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Horsepower @ Three Phase - 600V AC | 20 HP |
| Maximum Voltage Rating | 690 V AC |
| Mounting Style | DIN Rail, Panel |
| Embedded Surge Suppressor | Yes |
| Full Load Current - Resistive | 45 A |
| Full Load Current - Inductive | 25 A |
| Includes Auxiliary Contacts | Yes |
| Reversing Capability | Non-Reversing |
| Mounting Hole Distance - Width | 1.38 in |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Number of Auxillary Contacts | 1 |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Maximum Operating Temperature | 122 deg F |
| Overall Depth | 4 in |
| Response Time | Less Than14 msec (AC Operated Opening Delay), Less Than22 msec (AC Operated Closing Delay), Less Than30 msec (DC Operated Opening Delay), Less Than47 msec (DC Operated Opening Delay) |
| Package Quantity | 1 |
