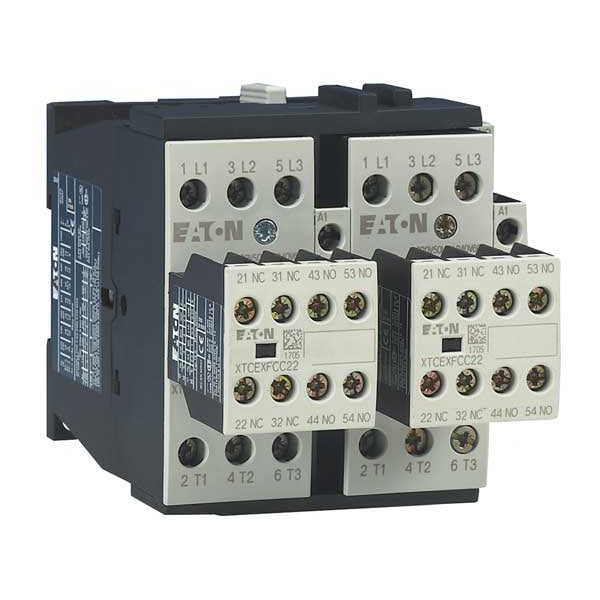

Contacto magnético IEC, 3 polos, 24 V CC, 32 A, Reversión: Sí
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 32 A |
| Full Load Amps-Resistive | 45 A |
| Action | Reversing |
| Type | Full voltage reversing contactor |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 230V | 5 |
| Height | 3.54 in |
| HP @ 1 Phase - 240V | 5 hp |
| HP @ 3 Phase - 208V | 10 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 240V | 10 hp |
| Depth | 5.79 in |
| HP @ 3 Phase - 575V | 25 hp |
| HP @ 3 Phase - 480V | 20 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NC, 2NO |
| Frame / Series / Class / Code | Frame C |
| Auxiliary Contact Form | 2NO/2NC |
| Standards | CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Series | XT |
| NEMA Size | Not Applicable |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Amperage Rating | 32 A |
| Frame Size | C |
| Product Width | 7-1/2 in |
| Product Length/Depth | 4-3/4 in |
| Compliances | CE Marked |
| Hp Rating - Max | 3, 5/ 10, 10, 20, 25 hp (1/3PH @115,230/200,230,460,575 V) |
| Coil Voltage | 24V DC |
| Certifications | CSA Certified;EN 60947;UL Listed;IEC 60947 |
| Product Name | Eaton XT IEC contactor |
| Product Height | 4-1/2 in |
| Contact Configuration | 2 NO, 2 NO |
| Full Load Current - Inductive | 32 A |
| Includes Auxiliary Contacts | Yes |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| NEMA Enclosure Material | Not Applicable |
| Mounting Style | DIN Rail, Panel |
| Embedded Surge Suppressor | Yes |
| Mounting Hole Distance - Height | 2.95 in |
| Full Load Current - Resistive | 45 A |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Overall Height | 4-1/2 in |
| Reversing Capability | Reversing |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Mounting Hole Diameter | 0.16 in |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Overall Width | 7-1/2 in |
| Number of Auxillary Contacts | 4 |
| Minimum Operating Temperature | -13 deg F |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Maximum Operating Temperature | 122 deg F |
| Mounting Hole Distance - Width | 1.77 in |
| Frequency | 50/60 Hz |
| Overall Depth | 4-3/4 in |
| Horsepower @ Three Phase - 480V AC | 20 HP |
| Package Quantity | 1 |
