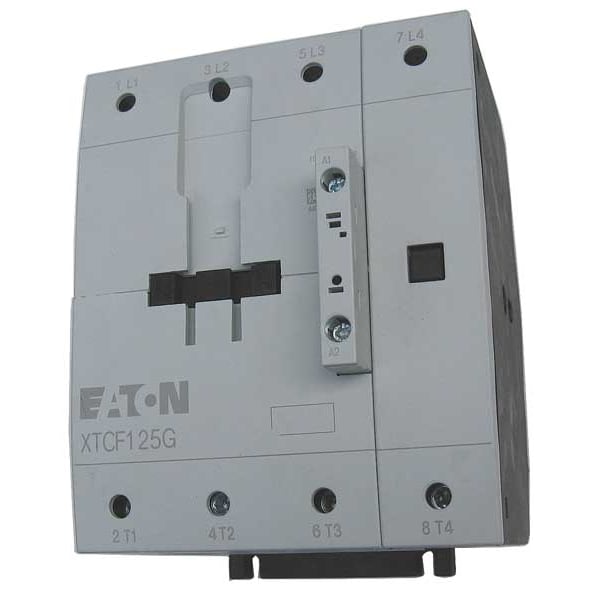

Contactor magnético IEC, 4 polos, 120 V CA, 115 A, Reversión: No
| Full Load Amps-Inductive | 115 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 200 A |
| Number of Poles | 4 |
| Coil Volts | 120 V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 40 |
| Height | 4.83 in |
| HP @ 1 Phase - 240V | 40 hp |
| Width | 4.83 in |
| HP @ 3 Phase - 208V | 40 hp |
| Depth | 6.3 in |
| HP @ 3 Phase - 240V | 50 hp |
| HP @ 3 Phase - 575V | 125 hp |
| HP @ 3 Phase - 480V | 100 hp |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Frame / Series / Class / Code | Frame G |
| Standards | CE, CSA, EN/IEC 60947, RoHS, UL Listed |
| NEMA Size | Not Applicable |
| Series | XT |
| Auxiliary Contact Form | Auxiliary Contacts Not Included |
| IP Rating | IP20 |
| Response Time | 28 to 33 msec (AC Operated Closing Delay), 30 msec (DC Operated Opening Delay), 35 msec (DC Operated Closing Delay), 35 to 41 msec (AC Operated Opening Delay) |
| Maximum Voltage Rating | 690 V AC |
| Horsepower @ Three Phase - 240V AC | 50 HP |
| Reversing Capability | Non-Reversing |
| Contactor Style | IEC |
| Full Load Current - Inductive | 115 A |
| Maximum Operating Temperature | 122 deg F |
| Mounting Style | DIN Rail, Panel |
| NEMA Enclosure Rating | No Enclosure |
| Overall Width | 5.24 in |
| Embedded Surge Suppressor | Yes |
| Frame Size | G |
| Minimum Operating Temperature | -13 deg F |
| Mounting Hole Diameter | 0.24 in |
| Terminal Connection Type | Screw Terminals |
| Frequency | 50/60 Hz |
| Mounting Hole Distance - Height | 6.14 in |
| Coil Voltage | 100-120V AC |
| Horsepower @ Three Phase - 208V AC | 40 HP |
| Mechanical Operating Durability | 10,000,000 |
| Phase | Three |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 600V AC | 125 HP |
| Number of Auxillary Contacts | 0 |
| Full Load Current - Resistive | 200 A |
| Overall Height | 6.69 in |
| Overall Depth | 6.89 in |
| Horsepower @ Three Phase - 480V AC | 100 HP |
| Mounting Hole Distance - Width | 2.76 in |
| Horsepower @ Single Phase - 240V AC | 40 HP |
| Includes Auxiliary Contacts | No |
| Package Quantity | 1 |
