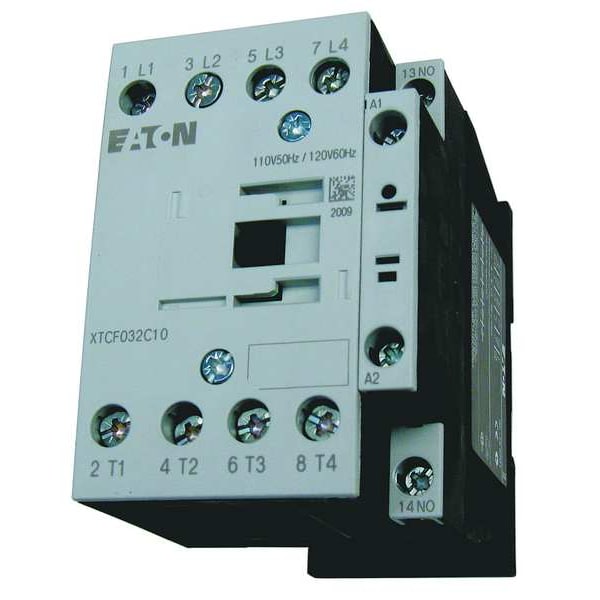

Contactador magnético IEC, 4 polos, 120 V CA, 18 A, Reversión: No
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 18 A |
| Full Load Amps-Resistive | 45 A |
| Action | Non-Reversing |
| Type | Full voltage non-reversing contactor |
| Number of Poles | 4 |
| Coil Volts | 120 V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 7.5 |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Height | 2.28 in |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| Width | 2.28 in |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 15 hp |
| Depth | 3.83 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 10 hp |
| Aux. Contact Configuration | 1NO |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO |
| Frame / Series / Class / Code | Frame C |
| Standards | CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| NEMA Size | Not Applicable |
| Series | XT |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Certifications | UL Listed;CSA Certified;IEC 60947;EN 60947 |
| Coil Voltage | 110/120V AC |
| Continuous Ampere Rating | 32 A |
| Product Width | 2.2835 in |
| Amperage Rating | 32 A |
| Hp Rating - Max | 7.5, 7.5, 10, 15 hp (3PH @200,230,460,575 V) |
| Compliances | CE Marked |
| Product Height | 3.3465 in |
| Frequency Rating | 50-60 Hz |
| Contact Configuration | 1 NO |
| Product Name | Eaton XT IEC contactor |
| Product Length/Depth | 5.4331 in |
| Number of Auxillary Contacts | 1 |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Embedded Surge Suppressor | Yes |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Overall Height | 3.35 in |
| Overall Depth | 5.43 in |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Minimum Operating Temperature | -13 deg F |
| Mechanical Operating Durability | 10,000,000 |
| Mounting Style | DIN Rail, Panel |
| Horsepower @ Three Phase - 600V AC | 15 HP |
| Full Load Current - Inductive | 18 A |
| Frame Size | C |
| Mounting Hole Distance - Width | 1.38 in |
| Frequency | 50/60 Hz |
| Response Time | 30 msec (DC Operated Opening Delay), 47 msec (DC Operated Closing Delay), 6 to 22 msec (AC Operated Closing Delay), 8 to 14 msec (AC Operated Opening Delay) |
| Maximum Operating Temperature | 122 deg F |
| Reversing Capability | Non-Reversing |
| NEMA Enclosure Rating | No Enclosure |
| Contactor Style | IEC |
| Overall Width | 2.28 in |
| Terminal Connection Type | Screw Terminals |
| Maximum Voltage Rating | 690 V AC |
| Mounting Hole Diameter | 0.16 in |
| Mounting Hole Distance - Height | 2.95 in |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Full Load Current - Resistive | 45 A |
| Package Quantity | 1 |
