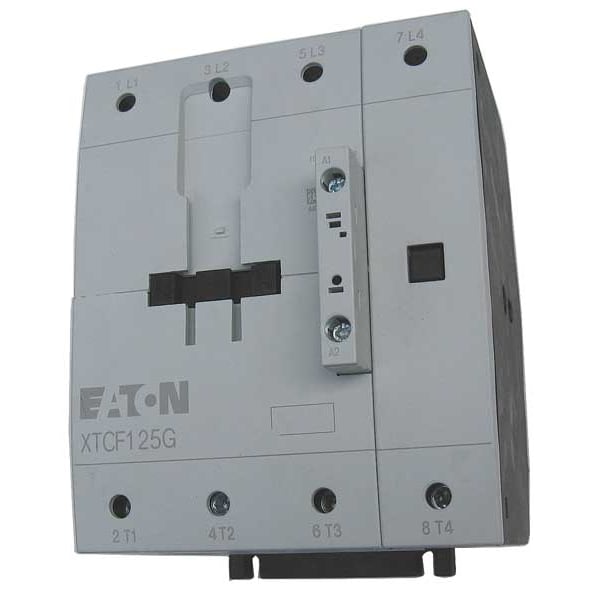

Contactador Magnético IEC, 4 Polos, 480 V CA, 95 A, Reversión: No
| Full Load Amps-Inductive | 95 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 160 A |
| Action | Non-Reversing |
| Type | Full voltage non-reversing contactor |
| Number of Poles | 4 |
| Coil Volts | 480 V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 25 |
| HP @ 1 Phase - 240V | 25 hp |
| Height | 4.83 in |
| Width | 4.83 in |
| HP @ 3 Phase - 208V | 25 hp |
| HP @ 3 Phase - 575V | 100 hp |
| Depth | 6.3 in |
| HP @ 3 Phase - 240V | 40 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 75 hp |
| Aux. Contact Configuration | No Auxiliary Contacts |
| Hz | 50/60 |
| Frame / Series / Class / Code | Frame G |
| Standards | CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| NEMA Size | Not Applicable |
| Series | XT |
| Auxiliary Contact Form | Auxiliary Contacts Not Included |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Amperage Rating | 160 A |
| Product Width | 6.42 in |
| Product Length/Depth | 5.03 in |
| Product Name | Eaton XT IEC contactor |
| Frame Size | G |
| Certifications | CSA Certified;EN 60947;UL Listed;IEC 60947 |
| Hp Rating - Max | 25, 40, 75, 100 hp (3PH @200,230,460,575 V) |
| Frequency Rating | 50-60 Hz |
| Contact Configuration | 0 NO, 0 NC |
| Product Height | 6.7 in |
| Compliances | CE Marked |
| Coil Voltage | 480/500V AC |
| Mechanical Operating Durability | 10,000,000 |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Single Phase - 240V AC | 25 HP |
| Full Load Current - Resistive | 160 A |
| Contactor Style | IEC |
| Horsepower @ Three Phase - 600V AC | 100 HP |
| Embedded Surge Suppressor | Yes |
| Minimum Operating Temperature | -13 deg F |
| Horsepower @ Three Phase - 240V AC | 40 HP |
| Reversing Capability | Non-Reversing |
| Maximum Operating Temperature | 122 deg F |
| Mounting Style | DIN Rail, Panel |
| Number of Auxillary Contacts | 0 |
| Frequency | 50/60 Hz |
| Maximum Voltage Rating | 690 V AC |
| Response Time | 28 to 33 msec (AC Operated Closing Delay), 30 msec (DC Operated Opening Delay), 35 msec (DC Operated Closing Delay), 35 to 41 msec (AC Operated Opening Delay) |
| Terminal Connection Type | Screw Terminals |
| Overall Depth | 5.03 in |
| Overall Width | 6.42 in |
| Horsepower @ Three Phase - 208V AC | 25 HP |
| Full Load Current - Inductive | 95 A |
| Overall Height | 6.7 in |
| Includes Auxiliary Contacts | No |
| Horsepower @ Three Phase - 480V AC | 75 HP |
| NEMA Enclosure Rating | No Enclosure |
| Package Quantity | 1 |
