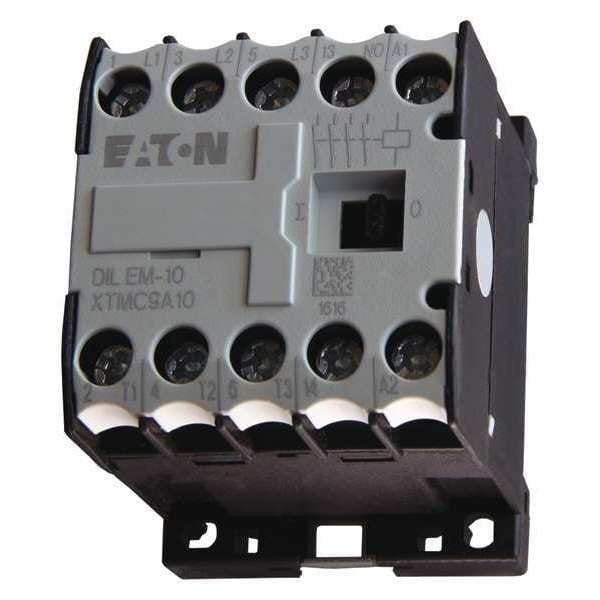

Contactador magnético mini IEC, 3 polos, 24 V CC, 9 A, Reversión: No.
| Item | Miniature IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 9 A |
| Full Load Amps-Resistive | 20 A |
| Action | Non-Reversing |
| Type | Full voltage non-reversing mini contactor |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | No |
| HP @ 1 Phase - 120V | 1/2 hp |
| HP @ 1 Phase - 230V | 1.5 |
| HP @ 1 Phase - 240V | 1 1/2 hp |
| Height | 1.77 in |
| Width | 1.77 in |
| HP @ 3 Phase - 208V | 2 hp |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 5 hp |
| Depth | 2.05 in |
| HP @ 3 Phase - 480V | 5 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO |
| Standards | CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed |
| Frame / Series / Class / Code | Frame A |
| Auxiliary Contact Form | 1NO |
| NEMA Size | Not Applicable |
| Series | XT |
| IP Rating | IP20 |
| Electrical Connection | Screw Terminals |
| Hp Rating - Max | 0.5, 1, 1.5/ 2, 3, 5, 5 hp (1/3PH @115,200,230/200,230,460,575 V) |
| Frame Size | A |
| Contact Configuration | 1 NO |
| Compliances | CE Marked |
| Amperage Rating | 8.8 A |
| Coil Voltage | 24V DC |
| Product Name | Eaton XT IEC mini contactor |
| Certifications | UL Listed;CSA Certified;IEC 60947;EN 60947 |
| Product Height | 2.28 in |
| Product Length/Depth | 1.79 in |
| Product Width | 1.44 in |
| Number of Auxillary Contacts | 1 |
| Full Load Current - Resistive | 20 A |
| NEMA Enclosure Rating | No Enclosure |
| Full Load Current - Inductive | 9 A |
| Horsepower @ Three Phase - 208V AC | 2 HP |
| NEMA Enclosure Material | Not Applicable |
| Reversing Capability | Non-Reversing |
| Minimum Operating Temperature | -13 deg F |
| Overall Width | 1.44 in |
| Mounting Postion | Vertical |
| Mounting Hole Diameter | 0.16 in |
| Overall Height | 2.28 in |
| Response Time | 14 msec (AC Coil Closing Delay Min), 15 msec (DC Coil Opening Delay min), 18 msec (AC Coil Opening Delay Max), 21 msec (AC Coil Closing Delay Max), 25 msec (DC Coil Opening Delay Max), 26 msec (DC Coil Closing Delay Min), 35 msec (DC Coil Closing Delay Max), 8 msec (AC Coil Opening Delay min) |
| Mechanical Operating Durability | 20,000,000 |
| Mounting Hole Distance - Height | 1.98 in |
| Overall Depth | 1.79 in |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Maximum Voltage Rating | 690V AC/DC |
| Maximum Operating Temperature | 122 deg F |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Mounting Hole Distance - Width | 1.38 in |
| Contactor Style | IEC |
| Frequency | 50/60 Hz |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Single Phase - 120V AC | 0.5 HP |
| Horsepower @ Single Phase - 240V AC | 1.5 HP |
| Embedded Surge Suppressor | Yes |
| Mounting Style | DIN Rail, Panel |
| Package Quantity | 1 |
