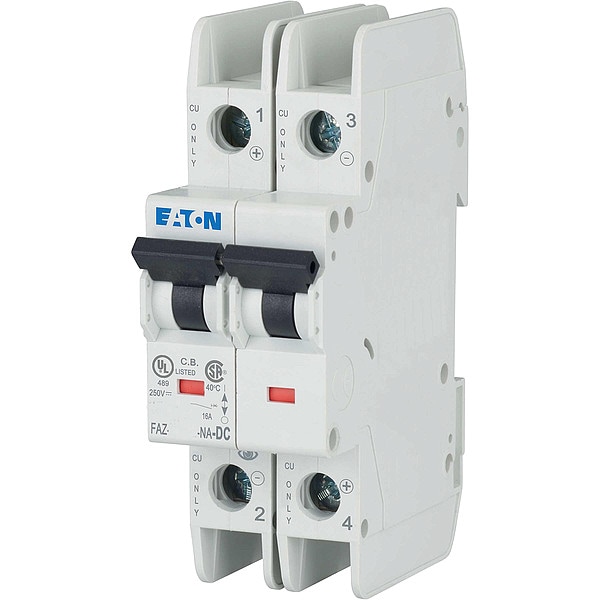

IEC Miniature Circuit Breaker, FAZ-NA Series, 10A, 2 Pole, Not Rated, 10kA at 277/480V AC, C Curve
| Item | IEC Miniature Circuit Breaker |
|---|---|
| Series | FAZ-NA |
| Amps | 10A |
| Number of Poles | 2 |
| AC Voltage Rating | Not Rated |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 10kA at 277/480V AC |
| Trip Type | Fixed Instantaneous |
| Instantaneous Trip | Instantaneous |
| Terminal Connection | Screw |
| Width | 2.97 in |
| Depth | 1.4 in |
| Height | 75.5 mm |
| DC Voltage Rating | 125V DC |
| Curve Type | C |
| Standards | CSA Std. C22.2 No. 235, UL 489 |
| Application | Industrial |
| Length | 4.13 in |
| Meets UL Type | UL 489 |
| Package Quantity | 1 |
