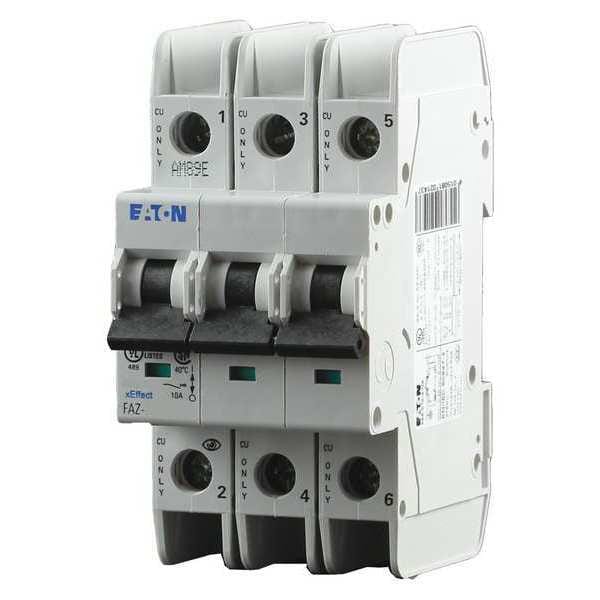

IEC Miniature Circuit Breaker, FAZ-NA Series, 40A, 3 Pole, 240V AC, 10kA at 277/480V AC, D Curve
| Item | IEC Miniature Circuit Breaker |
|---|---|
| Series | FAZ-NA |
| Amps | 40A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 10kA at 277/480V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Frame Size | 40A, FAZ |
| Width | 3 in |
| Depth | 4-1/4 in |
| DC Voltage Rating | 48/96V DC |
| Curve Type | D |
| Max. Wire Size | 6 AWG |
| Min. Wire Size | 18 AWG |
| Standards | CSA Certified, IEC 60947-2, UL 489 Listed |
| Application | Motor Control Circuits, Industrial Controls and Automation, Communication Equipment, Computers, Medical Equipment, Relays, UPS, HACR Equipment (Heating, Air Conditioning, Refrigeration) (Internal/External) |
| Meets UL Type | UL 489 |
| Min. Operating Temp. | -4 deg F |
| Max. Operating Temp. | 140 deg F |
| Length (Straight Wireway) | 2 in |
| Mounting | Din Rail |
| Length | 2 in |
| Package Quantity | 1 |
